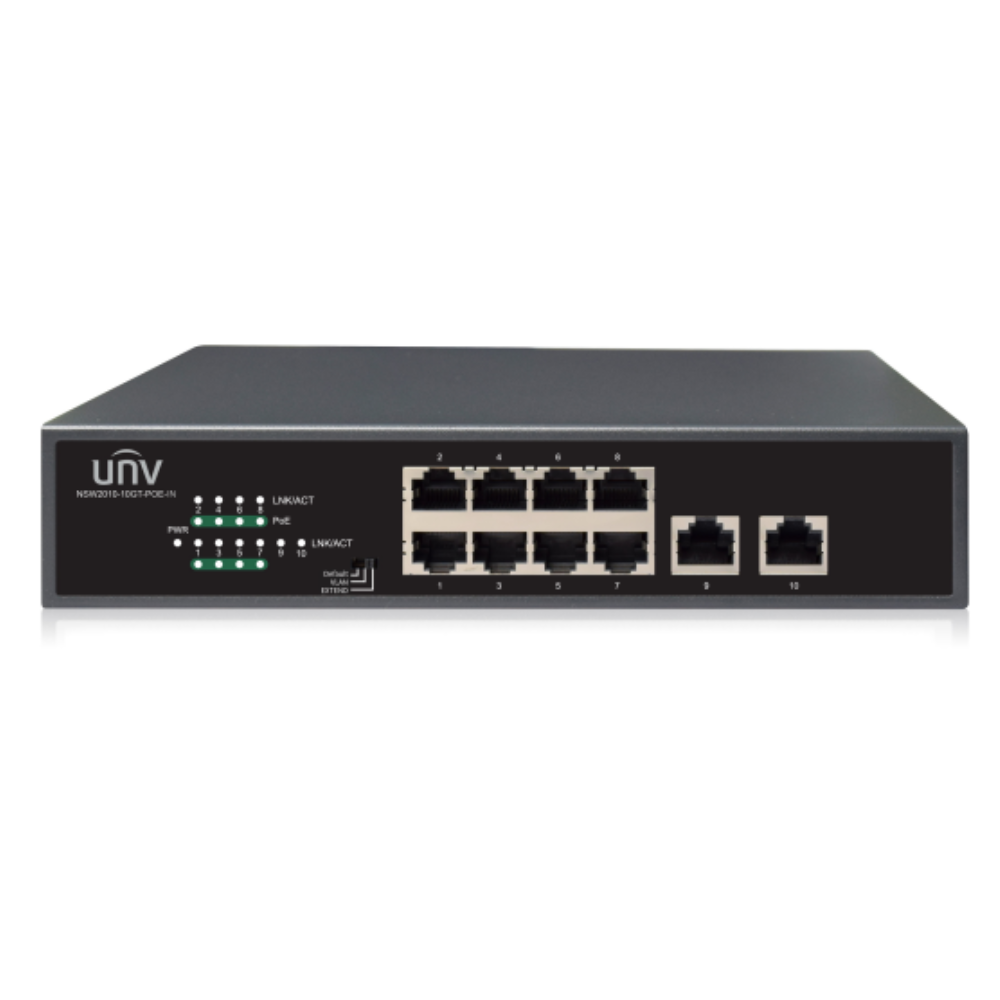

| NSW2010-10GT-POE-IN | ||||||||
| Hardware Specification | ||||||||
| Ports Type | 8×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45) | |||||||
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at | |||||||
| Switching capacity | 20 Gbps | |||||||
| Packet Buffer | 2 M bit | |||||||
| Forwarding performance | 14.88Mpps | |||||||
| MAC | 2K | |||||||
| Max. PoE Power | Max capacity: 120 W, Max capacity for single port: 30 W | |||||||
| Power supply | AC: 100-240 V, 50/60 Hz | |||||||
| PoE | support POE | |||||||
| Cooling Fans | 1 | |||||||
| Weight | <1.24kg | |||||||
| Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) | |||||||
| Storage humidity | 5%~90% (non-condensing) | |||||||
| Operating humidity | 10%~90% (non-condensing) | |||||||
| Dimensions (W×D×H) | 220mm x 150mm x 44mm (8.7"×5.9"×1.7") | |||||||
| Storage Temperature | -40 ℃ to 70 ℃ | |||||||
| Operating temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) | |||||||
| Working Mode | Default (Normal mode) : All ports can communicate with each other, VLAN (Secure mode): Downlink ports can communicate only with uplink ports., Extend (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2/17/2025 5:27:24 PM | UNV NSW2010-10GT-POE-IN Gigabit Ethernet Switches.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2/10/2025 3:00:43 AM | NSW2010-10GT-POE-IN_HD_Image_1.png | png | Download |
