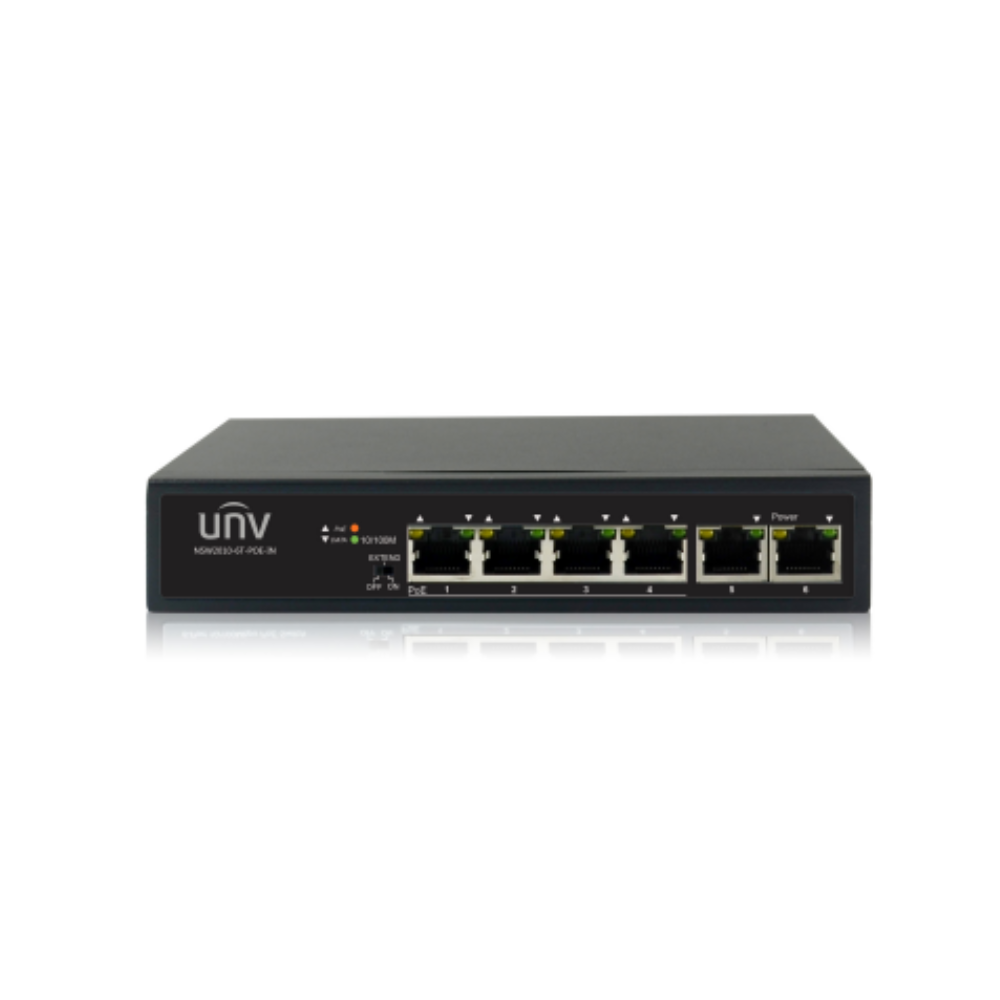

NSW2010-6T-PoE-IN

Ethernet Switch(PoE)

? Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
? Support port traffic control
? Support for secure mode, all downlink ports can communicate only with uplink ports
? Up to 250m transmission distance on surveillance mode
? Support buffer optimization
? All metal housing, safe and reliable

	NSW2010-6T-PoE-IN
Hardware Specification
Ports Type	6×100Mbps network ports (RJ45), including 4 PoE ports
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching capacity	1.2 Gbps
Forwarding performance	0.90Mpps
Packet Buffer	768K bit
MAC	2K
Weight	<0.6 kg
Power supply	AC: 100-240 V, 50/60 Hz
Dimensions (W×D×H)	160mm x 93mm x 32mm (6.3"×3.7"×1.3")
Max. PoE Power	Max capacity: 65 W, Max capacity for single port: 30 W
Cooling Fans	0
Operating temperature	0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
Storage Temperature	-40 ℃ to 70 ℃
Operating humidity	10%～90% (non-condensing)
Storage humidity	5%～90% (non-condensing)
Indicator	POWER Steady on: AC input is normal, POWER Off: No AC input, PoE Off: No PoE power supply, PoE Steady on: PoE power supply is normal, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data, Speed Off: Linked at 10/100 Mbps, Speed On: Linked at 1000 Mbps
Working Mode	Default (Normal mode) : All ports can communicate with each other, EXTEND (Surveillance mode): Transmission distance up to 250 meters
Mean Time Between Failure (MTBF)	>50000 hours
