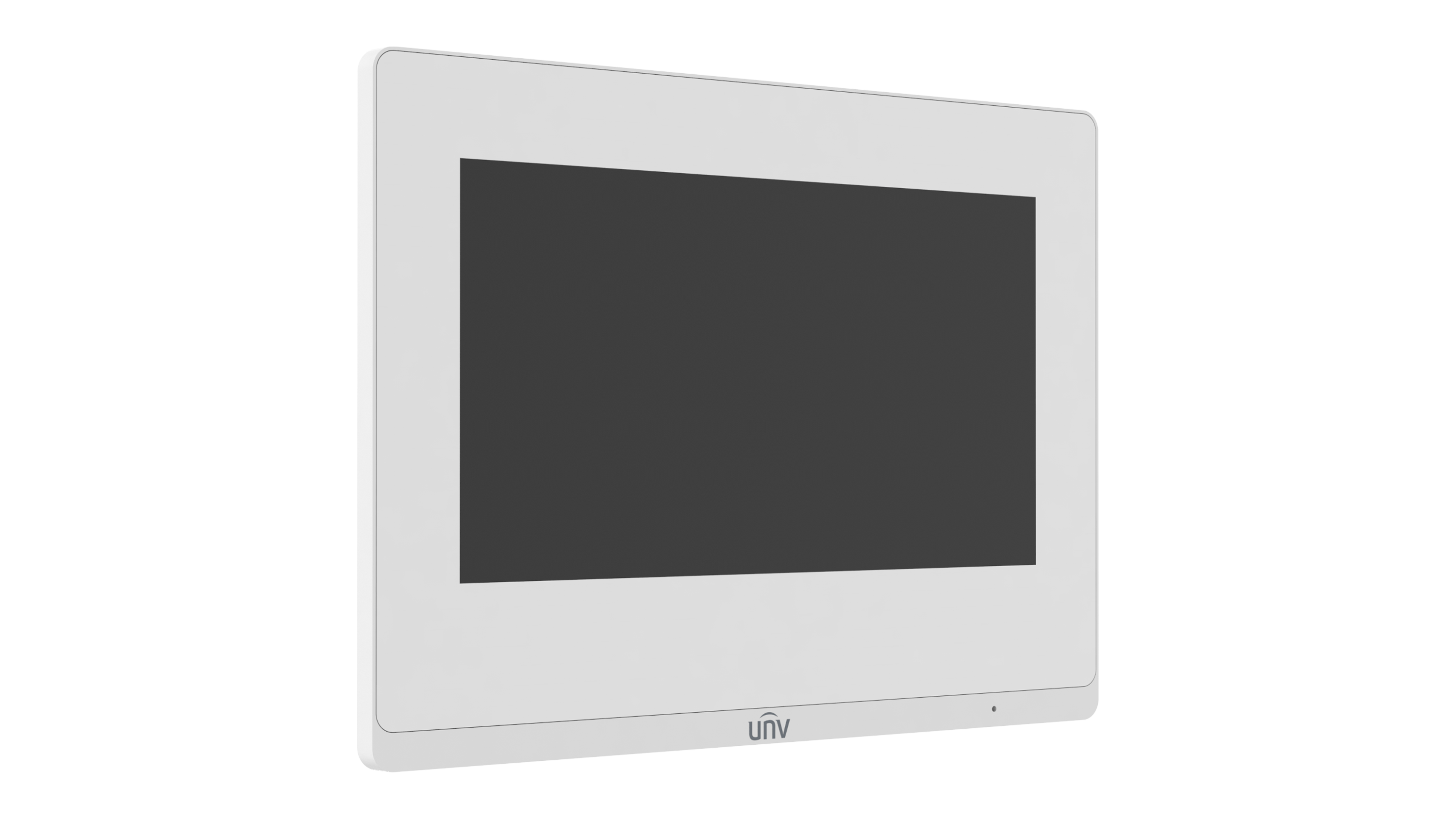

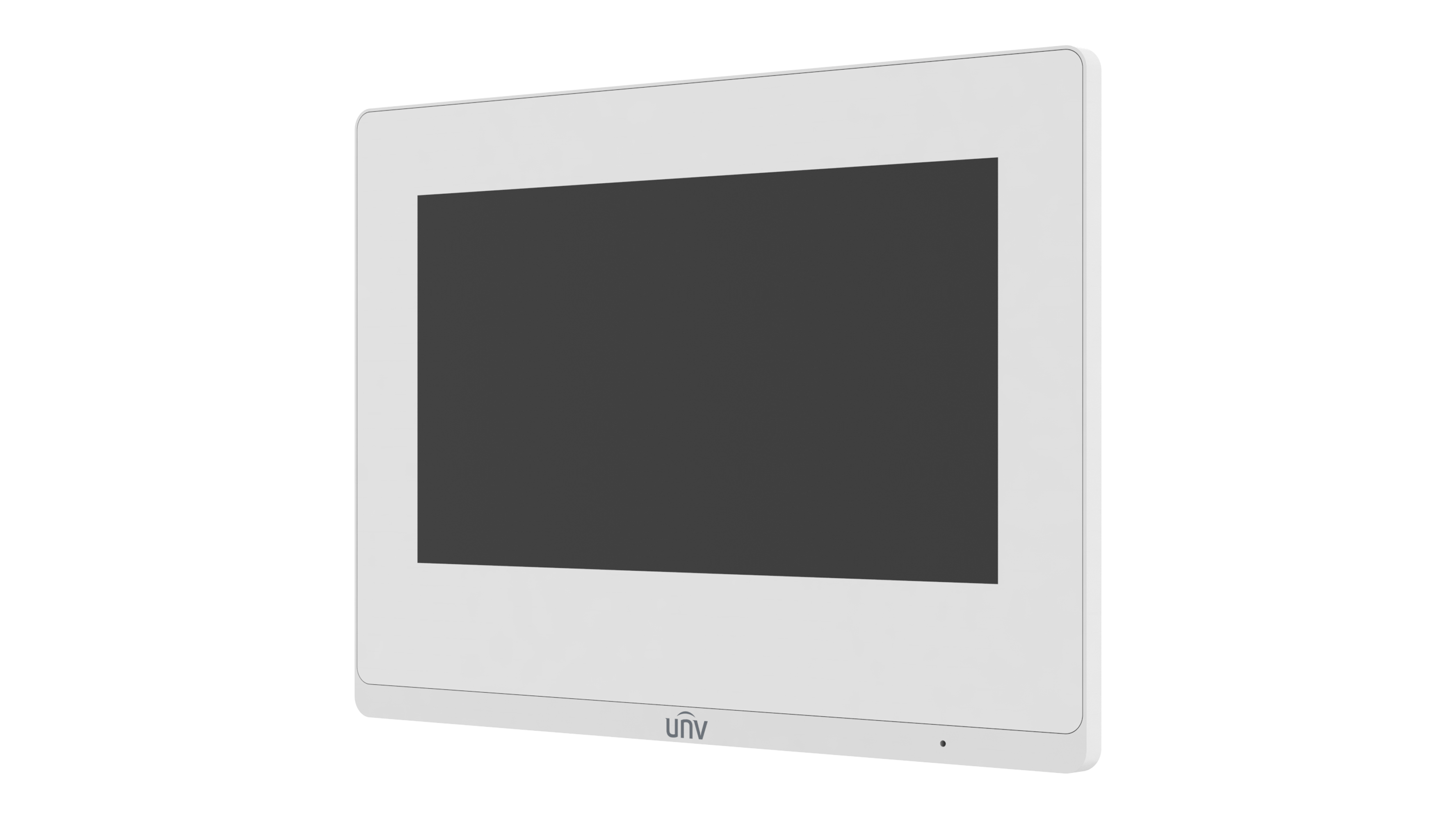

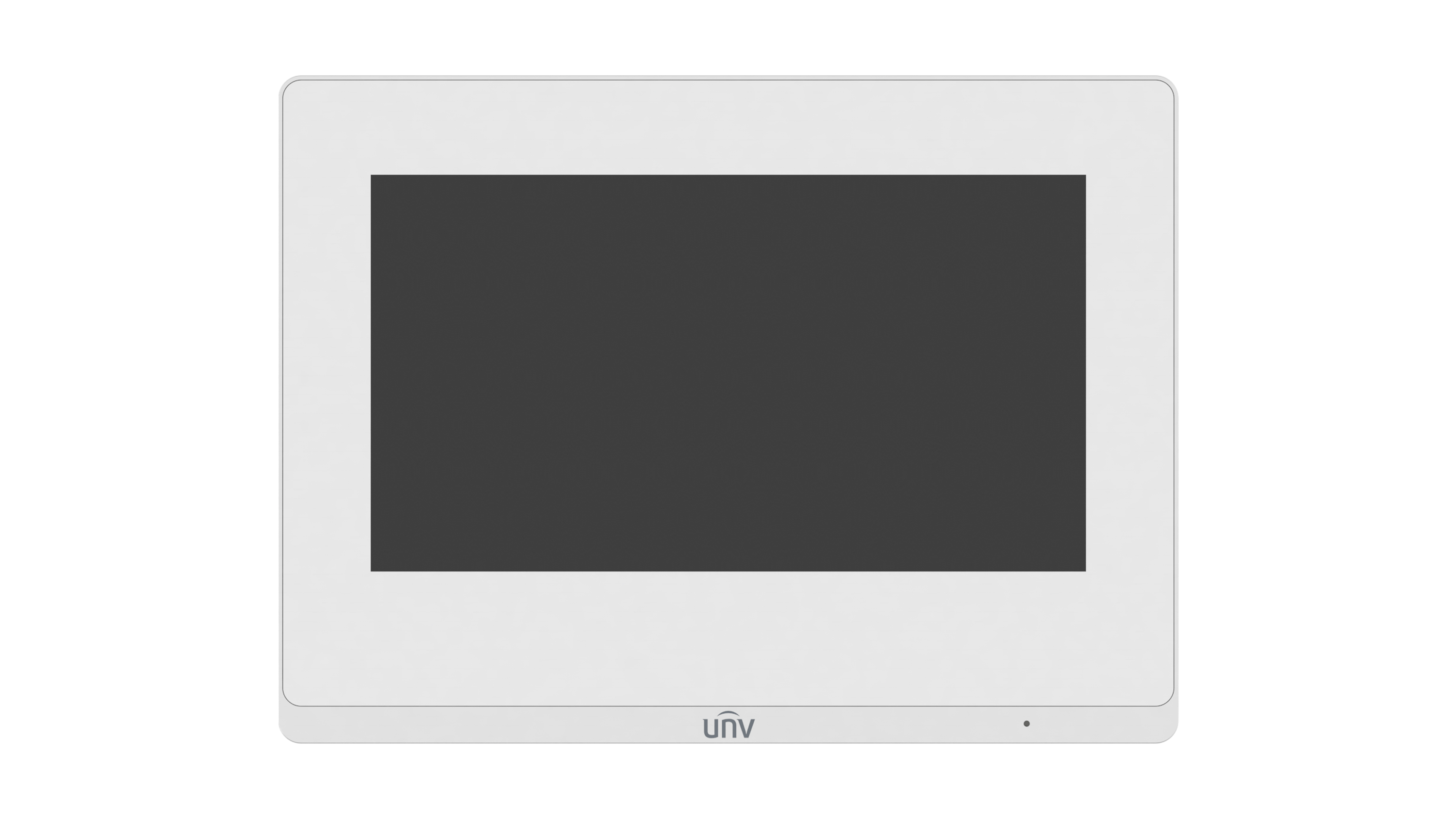

| OEI-372S-H-W-Z | ||||||||
| Hardware Specification | ||||||||
| Power Supply | DC12V±25%,IEEE802.3af, Standard PoE | |||||||
| Power Consumption | <10W | |||||||
| Screen | 7-inch ultra-thin TFT LCD screen | |||||||
| Screen Resolution | 1024×600 | |||||||
| Operation System | Linux | |||||||
| Audio Quality | Noise suppression,echo cancellation and AGC | |||||||
| Audio Input | 1 built-in omnidirectional microphone | |||||||
| Audio Output | 1 built-in speaker | |||||||
| Audio Compression Standard | MP3 G711 | |||||||
| Audio Compression Bitrate | 128Kbps | |||||||
| Interface | Power*1, network*1, RS485*1, IO output*2, IO input*8, TF card slot*1 | |||||||
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply,WIFI | |||||||
| Weight | 360g | |||||||
| Dimensions (L x W x H) | 193mm×143mm×25mm | |||||||
| Operating Environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor | |||||||
| Basic Business | ||||||||
| Protocol | UNV private protocol | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2/17/2025 10:47:03 PM | UNV OEI-372S-H-W-Z Indoor Station.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 12/14/2024 2:47:04 AM | OEI-372S-H-W-Z_HD_Image_1.png | png | Download |
| HD Image | 12/14/2024 2:47:04 AM | OEI-372S-H-W-Z_HD_Image_2.png | png | Download |
| HD Image | 12/14/2024 2:47:04 AM | OEI-372S-H-W-Z_HD_Image_3.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| User Manual | 12/25/2024 10:08:58 AM | UNV-Indoor Station & Villa Door Station User Manual.pdf | English | Preview | Download A > |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 9/12/2024 5:38:39 AM | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 12/14/2024 2:47:04 AM | OEI-372S-H-W-Z_Dimensions_1.png | Download |
