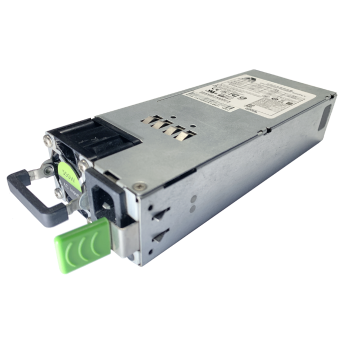

PWR-DC12-550A-IN

550W Power Accessories Module

??????? ??????

????????? ??? ?????

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/22 20:59:29	UNV PWR-DC12-550A-IN Power Supply.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/6/5 10:30:11	PWR-DC12-550A-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	PWR-DC12-550A-IN
AC Input
Voltage	90～264V AC
Frequency	47～63Hz
Power Factor	≥0.95
Input Current	≤8A@100-240VAC
Input Protection	Input undervoltage, Input overvoltage
DC Output
Voltage/Current	+12VDC/44A, +12Vsb/2.1A
Output Power	550W
Output Efficiency	≥89%, 220V AC/44A
Line Regulation	±5%
Load Regulation	±5%
Regulated Voltage Accuracy	±5%
Dynamic Response Overshoot	±5%
Current Sharing Rate	±5%
Output Protection	Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection
Other
Indicator light	Normal: green on, Abnormal: Yellow on
Working Temperature	0~50℃
Storage Temperature	-40~70℃
Working Humidity	10%~90%
Heat dissipation	Ventilating fan design, heat emission at back
Dimension (D × H × W)	185mm×39mm×73.5mm
Certification
EMC standards	EN55024, EN55032
NEBS standards	GR-63-CORE ISSUE 2
Approved standards	CB, FCC, UL
