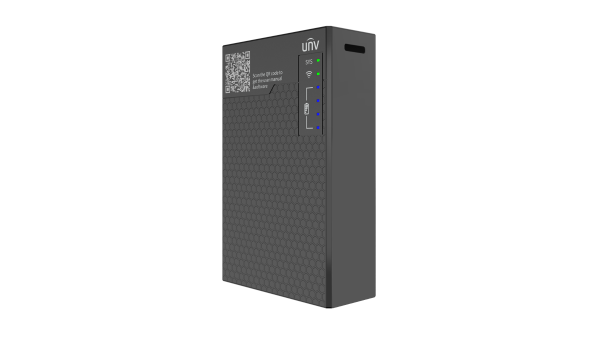

	GCB01-B7
Interface
Network	4 × RJ45 10 M/100 M Base-TX EthernetNetwork Port 1 Support POE (IEEE802.3af) OutputNetwork Port 4 Support PSE Voltage Test
Voltage Test	1 x PSE Voltage Test(PSE voltage detection Range： 1V~56V; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt) 1 x DC voltage Test(DC voltage detection Range： 1V~56V)
Network
Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n)
Structure / Environment
Battery Capacity	18650 lithium battery, 7500 mAH
Power Input	1 × DC 5 V/2 A max, type-c
Power Output	1 × DC 12 V/1 A output; 1 × DC 5 V/1 A output, type-A
General
LED Indicator	System indicator, WiFi indicator, Battery indicator
Dimensions	130 × 85 × 33mm (5.1” × 3.3” × 1.3”) (L x W x H)
Working Environment	-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
