CAB-LC2100B-E1-IN

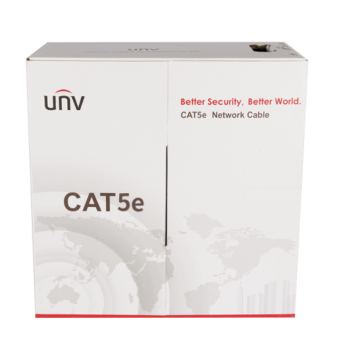

Cat5e(UTP),305m,BC,Gray

??????? ??????

????????? ??? ?????

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 6:40:17	UNV CAB-LC2100B-E1-IN UTP Category 5E Cables(0.43mm).pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/6/5 10:55:26	CAB-LC2100B-E1-IN_HD_Image_1.png	png	Download

Want to learn more?

	CAB-LC2100B-E1-IN
Cable
Product model	CAB-LC2100B-E1-IN
Test Standard	Fluke Test 90m
Product specification	HSYV-5e 4×2×0.43
Packing length	305±1 m
Rip-cord	Yes
Ambient temperature	-20℃～75℃
Conductor
Material	Solid-Bare Copper
AWG	25
Nom.O.D.(mm)	0.43±0.01 mm
DC resistance	≤113 Ω/km
Insulation
Material	HDPE
Diameter	0.75±0.05 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PVC
External O.D.	4.5±0.3 mm
Tensile strength	>13.8 Mpa
Thickness	0.5±0.1 mm
Color	Gray
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Packing
Packing	Pallet
Once packing dimension	340mm220mm340mm
