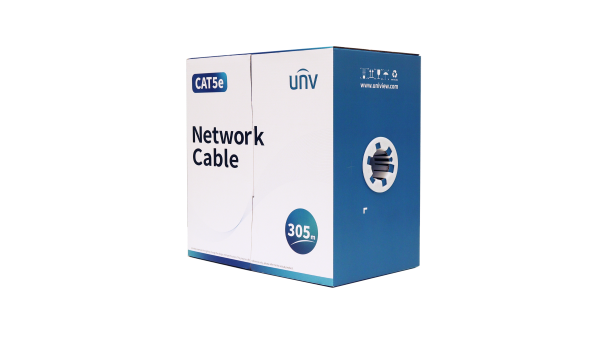

	CAB-LC2110B-IN
Cable
Product model	CAB-LC2110B-IN
Test Standard	ISO/IEC11801 ED.2, ANSI/TIA-568-C.2, Fluke test 100m （channel）
Product specification	Cat5e. U/UTP. 4×2×0.5mm Outdoor
Packing length	305±1 m
PET Foil	Yes
Rip-cord	Yes
Ambient temperature	-20℃ to 60℃
Conductor
Material	Solid-Bare Copper
AWG	24
Nom.O.D.(mm)	0.5±0.01 mm
DC resistance	≤95 Ω/km
Insulation
Material	HDPE
Diameter	0.87±0.05 mm
Color	Blue/White- Blue, Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PE
External O.D.	4.9±0.3 mm
Tensile strength	>10 Mpa
Thickness	0.52±0.05 mm
Color	Black
Surface Printing
Color	White
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Packing
Packing	Carton
Once packing dimension	410mm210mm410mm
Twice packing dimension	430mm465mm430mm
Twice packing quantity	2
