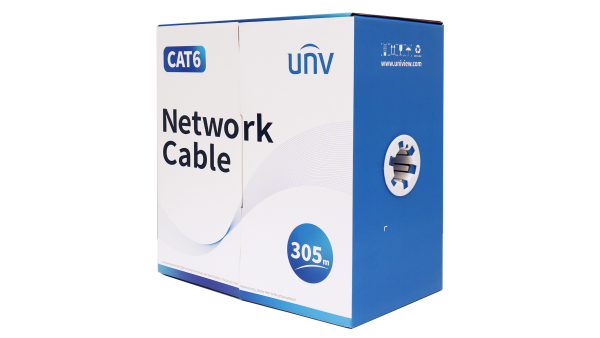

	CAB-LC3100A-ECA-IN
Cable
Product model	CAB-LC3100A-ECA-IN
Test Standard	ISO/IEC11801, TIA-568-C.2, Fluke Test 90m（channel）
Product specification	CAT6 4×2×0.56mm, CPR ECA
Packing length	305±1m
Crossing backbone	Yes
Rip-cord	Yes
Ambient temperature	-20℃ to 60℃
Conductor
Material	Solid-Bare Copper
AWG	23
Nom.O.D.(mm)	0.56±0.01 mm
DC resistance	≤95 Ω/km
Insulation
Material	HDPE
Diameter	1.0±0.05 mm
Color	Blue/White- Blue, Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	LSZH ECA
External O.D.	6.2±0.3 mm
Tensile strength	>10 Mpa
Thickness	0.6±0.05 mm
Color	Blue（RAL5015）
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Packing
Packing	Carton
Once packing dimension	410mm210mm410mm
Twice packing dimension	430mm465mm430mm
Twice packing quantity	2
