CAB-LC3100B-CCA-IN - Uniview - ???? ????? ????? AIoT

CAB-LC3100B-CCA-IN

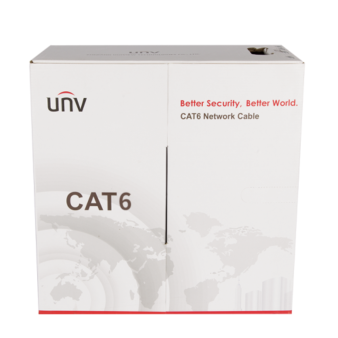

Cat6(UTP),305m,CCA,White

??????? ??????

????????? ??? ?????

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 6:49:15	UNV CAB-LC3100B-CCA-IN UTP Category 6 CCA Cables （0.56mm）.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/6/5 10:57:27	CAB-LC3100B-CCA-IN_HD_Image_1.png	png	Download

Want to learn more?

	CAB-LC3100B-CCA-IN
Cable
Product model	CAB-LC3100B-CCA-IN
Test Standard	Fluke Test 90m
Packing length	305±1 m
Rip-cord	Yes
Seperator	Yes
Ambient temperature	-20℃～75℃
Conductor
Material	CCA (copper content 19%-23%)
AWG	23
Nom.O.D.(mm)	0.56±0.01 mm
Insulation
Material	HDPE
Diameter	1.03±0.03 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PVC
External O.D.	6.0±0.4 mm
Thickness	0.5±0.05 mm
Color	White
Surface Printing
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Color	Black
Packing
Packing	Pallet
Once packing dimension	420mm205mm420mm
