	CAB-LC3101B-E2-IN
Cable
Product model	CAB-LC3101B-E2-IN
Test Standard	ISO/IEC11801, TIA-568-C.2, Fluke Test 90m（channel）
Product specification	CAT6 4×2×0.50mm
Packing length	305±1 m
Crossing backbone	Yes
Rip-cord	Yes
Ambient temperature	-20℃ to 60℃
Conductor
Material	Solid-Bare Copper
AWG	24
Nom.O.D.(mm)	0.5±0.01 mm
DC resistance	≤95 Ω/km
Insulation
Material	HDPE
Diameter	0.93±0.05 mm
Color	Blue/White- Blue, Green/White-Green,Orange/White-Orange,Brown/White-Brown
Sheath
Material	PVC
External O.D.	5.8±0.3 mm
Tensile strength	>13.5 Mpa
Thickness	0.6 ±0.05 mm
Color	Orange（RAL2008）
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Packing

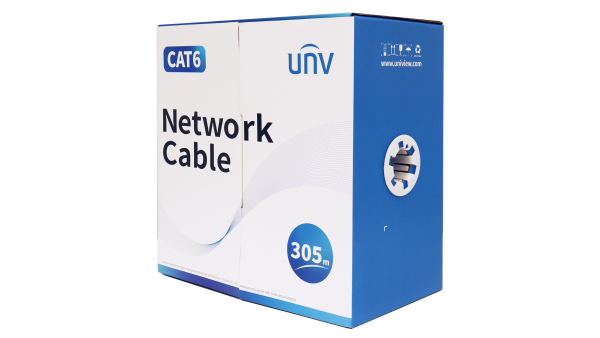

Packing	Carton
Once packing dimension	410mm210mm410mm
Twice packing dimension	430mm465mm430mm
Twice packing quantity	2
