OEA-ML22-500

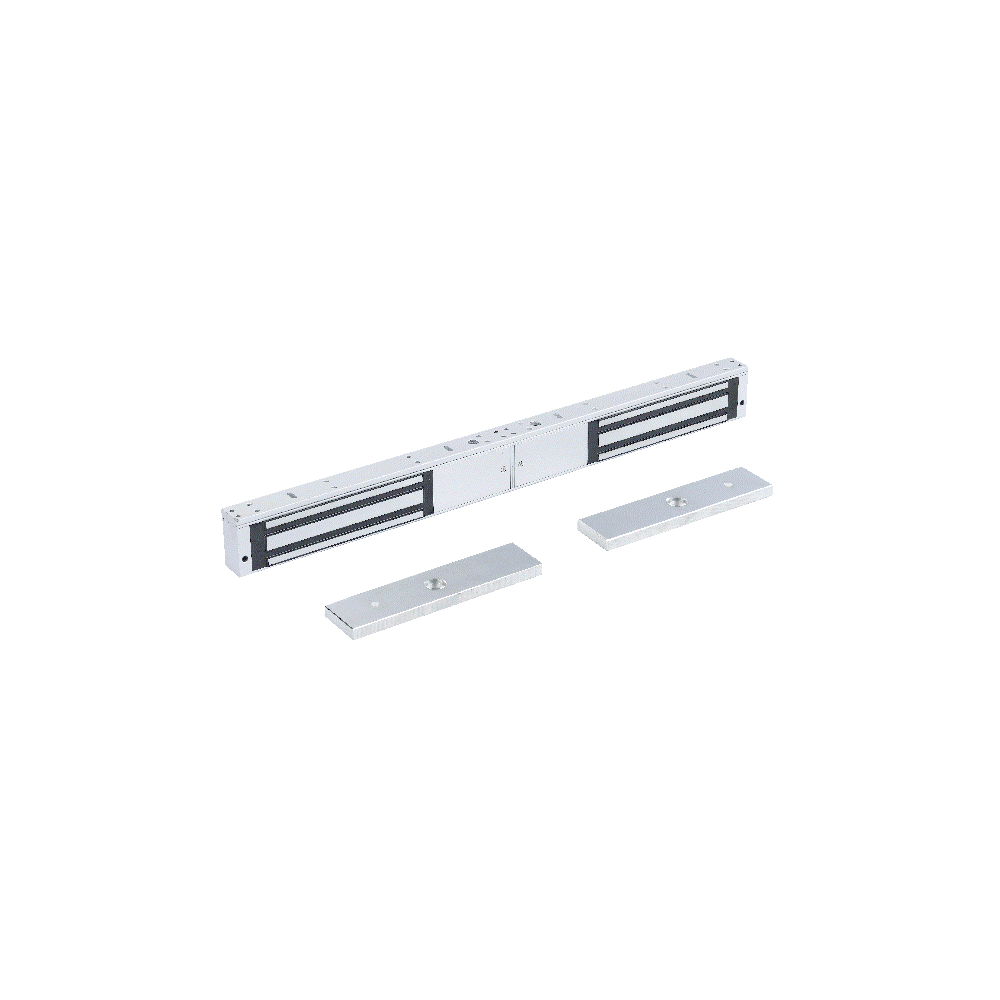

Double Door Electromagnetic Lock 500KG

? 500kg*2 holding force.
? Internal reverse current protection (MOV).
? Anti-residual magnetism design, wear-resistant material.
? Aluminum shell made of high-strength alloy material.
? Tamper-proof screws.

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 20:48:40	UNV OEA-ML22-500 OEA-ML22-500 Double-Door Magnetic Lock (500kg).pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/3/5 1:10:25	OEA-ML22-500_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2025/3/5 1:10:25	OEA-ML22-500_Dimensions_1.png	Download

	OEA-ML22-500
Hardware Specification
Power Supply	DC12V/DC24V
Operating Current	600mA*2
Standby Current	600mA2/300mA2
Security Type	Failsafe
Operating Environment	Operating temperature: -30°C to +60°C; operating humidity: ≤95%
Weight	9.2kg
Dimensions (L x W x H)	Lock body: 530x70x40(mm); armature plate: 185x60x13(mm)
Door Support	Wooden door, glass door, metal door, etc.
Attestation	CE/FCC/ROHS
