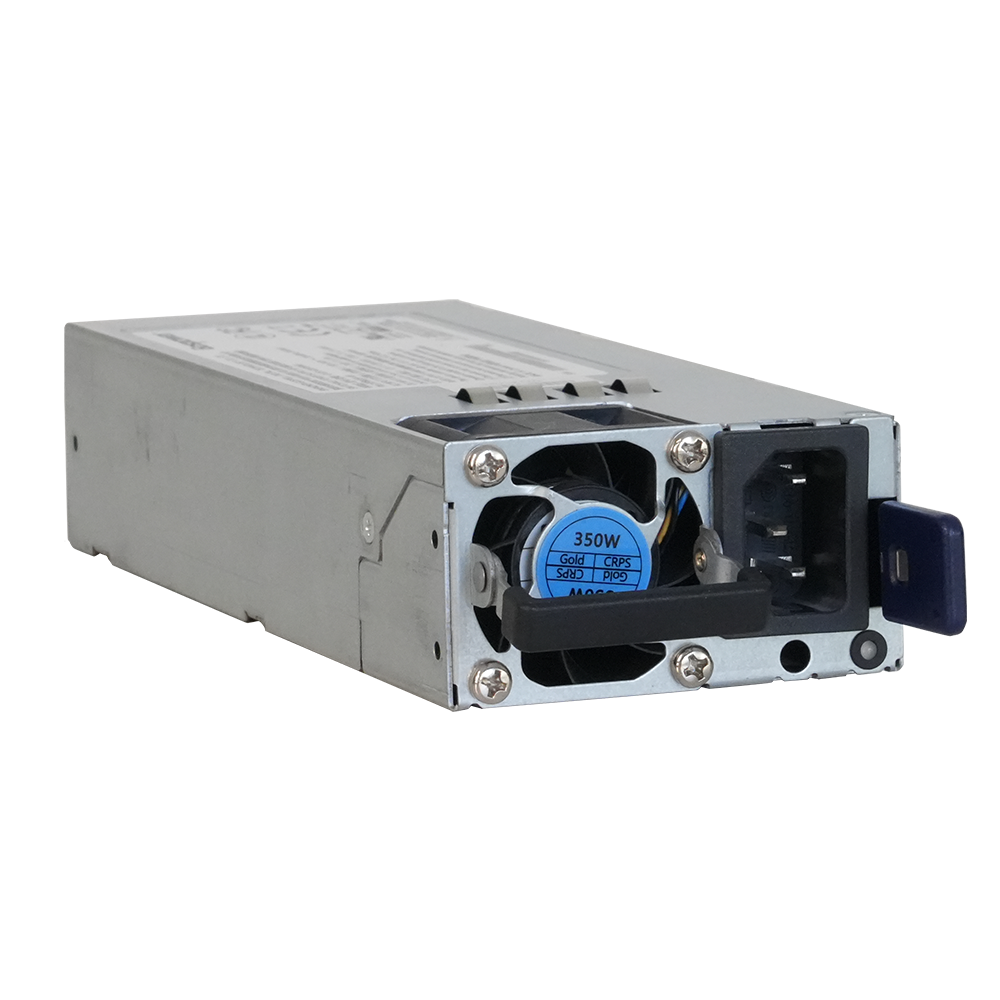

PWR-DC12-350A-IN

350W Power Accessories Module

Especificación

Descargar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 21:39:33	UNV PWR-DC12-350A-IN Power Supply.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/3/29 1:10:53	PWR-DC12-350A-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	PWR-DC12-350A-IN
AC Input
Voltage	90～264V AC
Frequency	47～63Hz
Power Factor	≥0.95
Input Current	≤6.3A@100-240VAC
Input Protection	Input undervoltage, Input overvoltage
DC Output
Voltage/Current	+12VDC/29A, +12VStandby/2.1A
Output Power	350W
Output Efficiency	≥89%, 220V AC/29A
Line Regulation	±5%
Load Regulation	±5%
Regulated Voltage Accuracy	±5%
Dynamic Response Overshoot	±5%
Current Sharing Rate	±5%
Output Protection	Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection
Other
Indicator light	Normal: green on, Abnormal: Yellow on
Working Temperature	0~50℃
Storage Temperature	-40~70℃
Working Humidity	10%~90%
Heat dissipation	Ventilating fan design, heat emission at back
Dimension (D × H × W)	185mm×40mm×73.5mm
Certification
EMC standards	EN55032, EN 61000-3-2, EN55035
NEBS standards	SR-332 ISSUE 2
Approved standards	CB, FCC, UL
