MPR-MU1-OS - Uniview - Leader of AIoT Solution

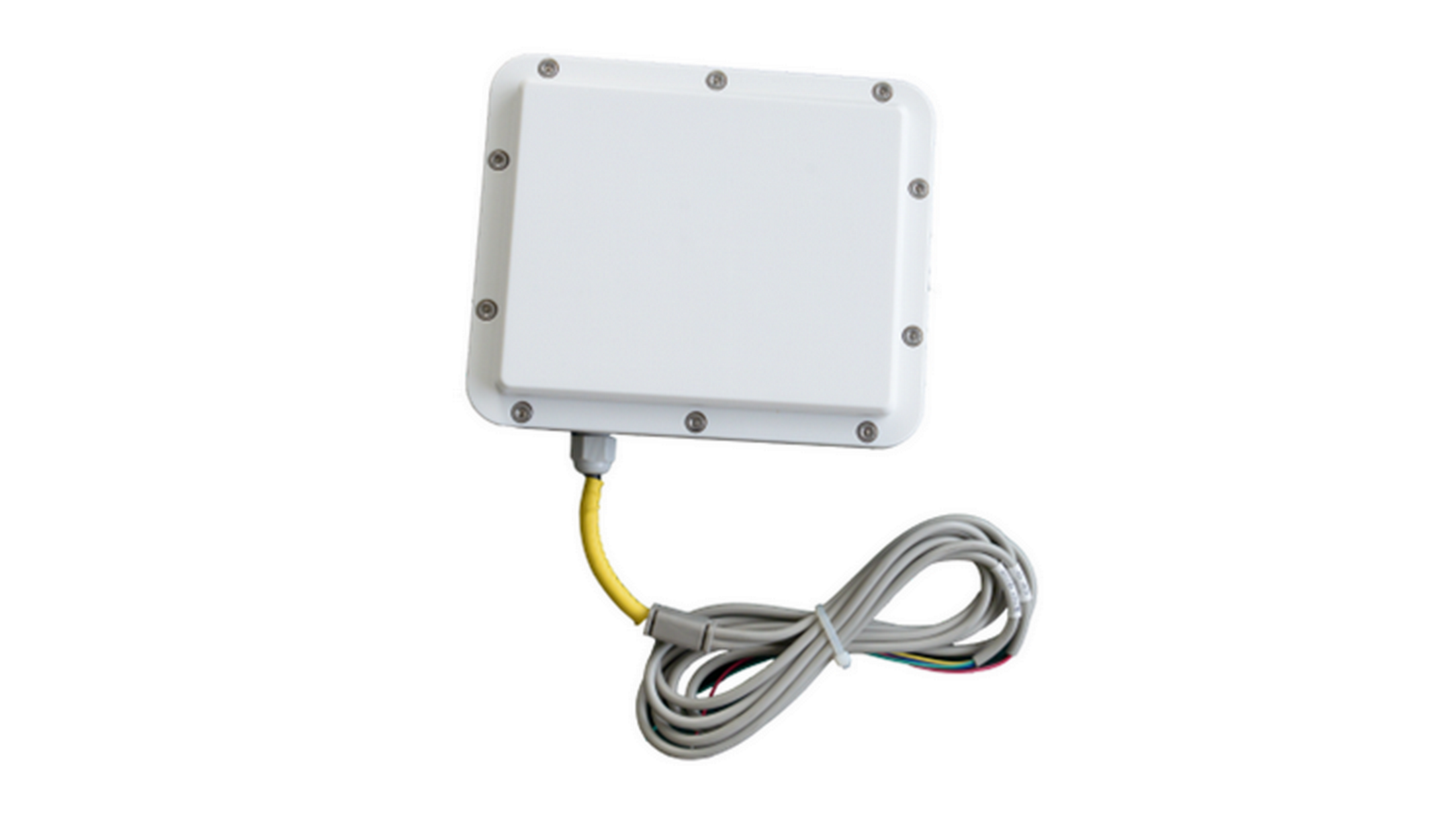

MPR-MU1-OS

Positioning Capture Radar(Single-lane)

? Capture rate of over 99%.
? Supports bidirectional trigger and wrong-way driving capture.
? Supports wireless commissioning and fine-tuning through Wi-Fi network
? Precise positioning within ±0.5m and speed measurement deviation within 0.2km/h.
? Supports front mount and side mount.

Datasheet
HD Image
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 21:45:06	UNV MPR-MU1-OS Positioning and Capture Radar (Single-Lane) 20231228.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2024/10/22 9:49:54	MPR-MU1-OS_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2024/10/22 9:49:54	MPR-MU1-OS_Dimensions_1.png	Download

	MPR-MU1-OS
Object detection
Detection direction	Incoming
Speed accuracy	3km/h
Distance accuracy	± 0.5m
Hardware
Operating temperature	0% to 95% RH
Total weight	≤ 0.45kg
Operating humidity	-35°C to 85°C
Ingress protection	IP66
Operating frequency	24.15GHz
Interface Characteristics
Power supply	DC 12 V
Communication interface	1 x RS485
Specifications
Dimensions	168mm140mm50mm
Mount method
Front mount	5 to 10m, it is recommended to install at the road center with the height of 6 meters
Application Scenario
Application Scenario	Road section
