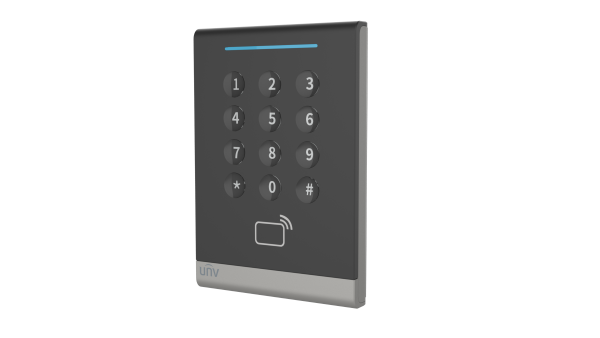

| OEC-R3H-ESK | ||||||||
| Hardware Specification | ||||||||
| Operating Frequency | 125kHz,13.56MHz | |||||||
| Card reader interface | RS-485 Serial Port x1, Wiegand Output x1 | |||||||
| Dimensions | 128.8*88*20.9mm | |||||||
| Weight | 141g | |||||||
| Mount Method | 115*73mm junction box, 86*86mm junction box | |||||||
| Operating Temperature | -30°C to 65°C | |||||||
| Operating Humidity | 10% to 90% | |||||||
| Storage Temperature | -40°C to 65°C | |||||||
| Indicator | Steady blue: Normal operation; Steady green for 1s: Card authentication succeeded; Steady red for 1s: Card authentication failed | |||||||
| Power Consumption | 1.28W | |||||||
| Operating Voltage | DC 12V ± 25% | |||||||
| Operating Current | 107mA | |||||||
| Reading Distance | IC card: max. 3cm | |||||||
| Authentication Mode | Card | |||||||
| Protection Level | IP54 | |||||||
| DIP Switch | 10-bit, bit1-4: RS-485 Address (default 0000, 0=off, 1=on) bit5: Mode Switch (Off=Wiegand, On=RS-485) bit6: Wiegand Protocol (default off=Wiegand 34, on=Wiegand 26) bit7: Termination Resistor (default off=disabled, on=enabled). Enable when RS-485 line is long or at high rate (>1Mbps) bit8: Enable or disable card security function, default off (On: encryption authentication required, read CPU card file content. Off: no encryption verification, only read card physical number) bit9-10: Reserved | |||||||
| Tamper Button | Supported, continuous rapid beep alarm | |||||||
| Physical | ||||||||
| Material | PC | |||||||
| Basic Business | ||||||||
| Reading Time | < 1s | |||||||
| Card Type | Supports Mifare card physical number, Mifare card sector number, EM card physical number, Desfire card physical number, Desfire card file number reading | |||||||
| Class | Date | Title | Language | Type | Preview | Download |
| Datasheet | 2026/8/31 9:09:57 | UNV OEC-R3H-ESK OEC-R3H-ESK.pdf | English | Preview | Download A > |
| Class | Date | Title | Type | Download |
| HD Image | 2026/9/7 14:25:51 | OEC-R3H-ESK_HD_Image_1.png | png | Download |
| HD Image | 2026/9/7 14:25:51 | OEC-R3H-ESK_HD_Image_2.png | png | Download |
| HD Image | 2026/9/7 14:25:51 | OEC-R3H-ESK_HD_Image_3.png | png | Download |
| Class | Date | Title | Language | Type | Preview | Download |
| Quick Guide | 2026/7/1 4:05:46 | Quick Guide.pdf | English | Preview | Download A > |
| Class | Date | Title | Download |
| Dimensions | 2026/9/7 14:25:51 | OEC-R3H-ESK_Dimensions_1.png | Download |
