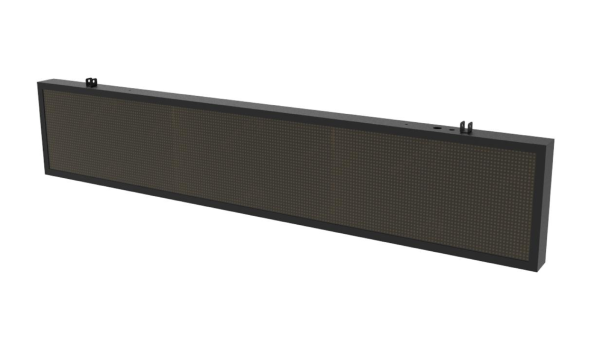

PKS2503-RG - Uniview - Global AIoT Solutions Provider


PKS2503-RG

Indoor Tri-Directional Parking Guidance Screen

? Supports displaying real-time parking space availability for each direction in red, green, and yellow.
? Displays standard English letters, numerals, and arrow symbols for clear and easy recognition.
? Features a fine pixel pitch for sharp, vivid, and highly legible content.
? Equipped with an RJ45 Ethernet port using TCP/IP communication, enabling easy integration into control systems.

Fiche technique
Image HD
Dimensions

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2026/6/23 13:02:57	UNV PKS2503-RG Indoor Tridirectional Parking Guidance Display.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2026/9/7 12:10:16	PKS2503-RG_HD_Image_1.png	png	Download

Class	Date	Title	Download
Dimensions	2026/9/7 12:10:16	PKS2503-RG_Dimensions_1.png	Download

	PKS2503-RG
Module
Pixel Pitch	4.75mm
Module Resolution (W × H)	64*32
Display Parameters
Display size	192*32
Display character	Numbers, letters, symbols
Display color	Red, green, yellow
Processing Image
Brightness (nits)	1500
Color Temperature (K)	4500 ~ 5500K
Processing performance
Scanning Mode (S)	16S
Drive Mode	Constant current
Refresh Rate (Hz)	1920
Interface
Network interface	100M*1
Serial port	RS485*1
Electrical
Power Supply	AC100 ~ 240V
General
Product Dimensions (W × H × D) (mm)	150430665
Ingress Protection	IP31
Operating Temperature	-20℃ ~ 50℃
Operating Humidity	10% ~ 95% RH (no condensation)
Accessories Included	Hanging rod 2, Key2, Quick guide*1
