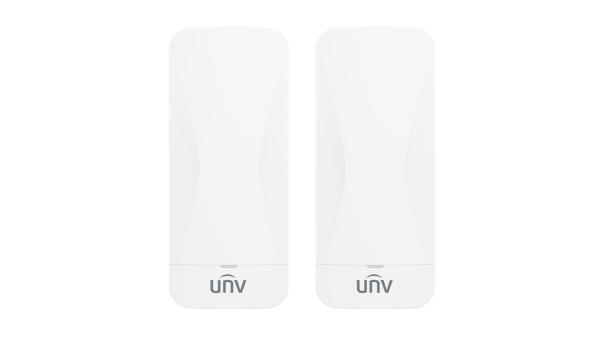

| WB-5000-5AC-KIT-IN | ||||||||
| Hardware Specification | ||||||||
| Dimensions(mm) | 268×115×45mm | |||||||
| Weight(kg) | 0.48kg | |||||||
| Installation | Pole mounting, Wall mounting | |||||||
| Protection Level | IP65 | |||||||
| Antenna Gain | 18dBi | |||||||
| Beam Width | H:30°,V:15° | |||||||
| Max Power Consumption(W) | 10W | |||||||
| Physical Interface | 1*10/1000Mbps RJ45, 1*10/1000Mbps RJ45 PoE in | |||||||
| Indicator Light | 1*Power Indicator 1*WLAN Indicator 1*LAN Indicator 4* Signal strength indicator 1* 5G WiFi indicator | |||||||
| Maximum Transmitted Power | 20±2dBm@802.11ac VHT20 MCS0 | |||||||
| Working Temperature | -30℃ to 55℃ | |||||||
| Working Humidity | -40℃ to 70℃ | |||||||
| Transmission Distance | 5km | |||||||
| Transmission Capability | 200Mbps/5km@AC80 110Mbps/5km@AC40 20×channels×4MP@AC80 10×channels×4MP@AC40 | |||||||
| Reset Button | Press and hold for 10 seconds to restore factory default settings, short press for 1 second to start pairing | |||||||
| Rx Sensitivity | -81±2dBm@AC80-MCS0 -56±2dBm@AC80-MCS9 | |||||||
| Channels Width | 20/40/80MHz, Auto/manual selection | |||||||
| ESD Protection | Contact 6KV , Air 8KV | |||||||
| Surge | POE/GE: CM 2KV , DM 1KV | |||||||
| Hardware Specification | ||||||||
| Power Supply | ModeA: powered by 12V passive POE injector ModeB: Powered by DC12V adapter | |||||||
| Software Specification | ||||||||
| Protocol | IEEE 802.11a/n/ac | |||||||
| Frequency | 5.150GHz~5.850GHz (Note: Available channel may vary with local regulations.) | |||||||
| Network Mode | Bridge | |||||||
| Management | Web | |||||||
| Ethernet | IPv4 static, GHCP, VLAN, IGMP Snooping, Multicast Acceleration | |||||||
| WiFi | Relay, User Isolation, Transmitted Power set | |||||||
| System and Maintaince | Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software. Support system log and remote log. Support NTP. | |||||||
| Software Specification | ||||||||
| Security | WPA2-PSK, Hidden SSID, MAC Filtering | |||||||
