UAC-T128-ADF28(40)MS—Zhejiang Uniview Technologies Co., Ltd.

UAC-T128-ADF28(40)MS

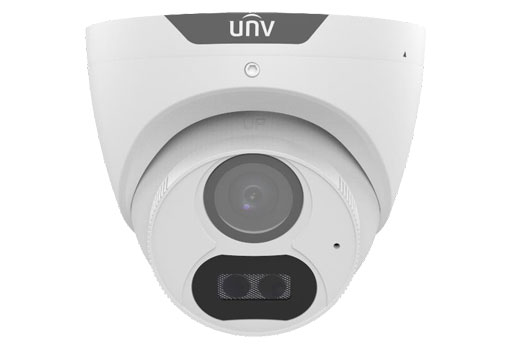

8MP LightHunter Fixed IR Turret Analog Camera

? High quality imaging with 8MP resolution
? TVI/CVI/AHD/CVBS
? Supports IR-cut filter with auto-switch (ICR)
? LightHunter monitoring with high-sensitivity sensor
? 3D noise reduction technology delivers clean and sharp images
? Supports 180° horizontal flip, 180° vertical flip
? OSD configuration menu, easy to operate
? IP67 waterproof and dustproof design, high reliability
? OSD configuration menu in 11 languages
? Built-in microphone for high quality audio transmission via coaxial cables
? 120dB true WDR technology enables clear image in strong light scene

Model	UAC-T128-ADF28MS	UAC-T128-ADF40MS
Sensor
Pixel	8MP
Size	1/2.7"
Minimum illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR ON)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 109.1° V: 61.0° D: 126.7°	H: 86.8° V: 49.4° D: 99.9°
Illuminator
Illuminator	Two IR illuminators
Illumination distance	40m
Lifetime	≥60,000 hours
Video
Resolution	4K: 3840(H) × 2160(V) 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V)
Frame rate	CVI: 4K@15fps (default), 5MP@20fps, 4MP@25fps, 4MP@30fps TVI/AHD: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	Four modes: Global (default), BLC, HLC, WDR
Day/Night	Three modes: Auto (default), Day, Night
Digital noise reduction	2D/3D
White balance	Two modes: Auto (default), Manual
WDR	120dB WDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Defog	N/A
Audio
Microphone	Built-in Mic
Camera audio	CVI: 4K@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge protection	4kV
General
Power	DC 12V (±25%), with reverse polarity protection, Max 4.8W
Mount	Surface mount (default), optional backbox, wall mount bracket
Dimensions	Φ111mm98mm (diameterheight)
Material	Metal
Weight	417g(0.92lb)
OSD menu language	11 Languages English, German, Spanish(Latin America), French, Italian, Japanese, Korean, Polish, Portuguese(Brazil), Russian, Turkish
Certification
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE-LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

Datasheet of UAC-T128-ADF28(40)MS
