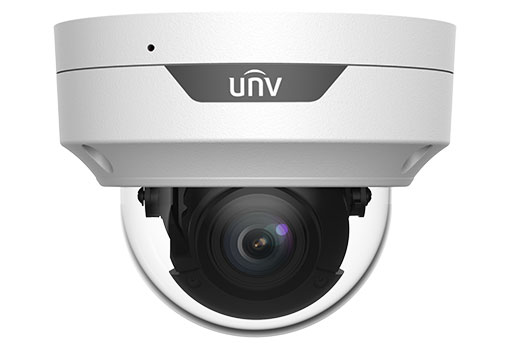

| IPC3535LB-ADZK-H | ||||||||||
| Camera | ||||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||||
| Minimum Illumination | Colour: 0.001 lux (F1.6, AGC ON) 0 lux with IR on | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 90° | Rotate: 0° ~ 360° | |||||||
| WDR | 120dB | |||||||||
| S/N | >52 dB | |||||||||
| Lens | ||||||||||
| Lens | 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens | |||||||||
| Iris | Fixed | |||||||||
| Field of View (H) | 96.4°~32.7° | |||||||||
| Field of View (V) | 51.3°~18.6° | |||||||||
| Field of View (D) | 101.2°~37.2° | |||||||||
| DORI | ||||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63(206.7ft) | 25.2(82.7ft) | 12.6(41.3ft) | 6.3(20.7ft) | ||||||
| 12 | 270.0(885.8ft) | 108.0(354.3ft) | 54.0(177.2ft) | 27.0(88.6ft) | ||||||
| Illuminator | ||||||||||
| IR Range | Up to 40m (131ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Video | ||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | |||||||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; | |||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | |||||||||
| U-code | Support | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Video Stream | Dual streams | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | N/A | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Defog | Digital Defog | |||||||||
| Events | ||||||||||
| Basic Detection | Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection | |||||||||
| General Function | Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711U, G.711A | |||||||||
| Audio Bitrate | 64 Kbps | |||||||||
| Two-way Audio | N/A | |||||||||
| Suppression | Support | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||||
| Network Storage | ANR, NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, QoS, RTMP,SSL/TLS | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK | |||||||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | |||||||||
| Security | Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | |||||||||
| Client | EZStation EZView EZLive | |||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | |||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||||||||
| Interface | ||||||||||
| Audio I/O | N/A | |||||||||
| Alarm I/O | N/A | |||||||||
| RS485 | N/A | |||||||||
| Built-in Mic | Support | |||||||||
| Built-in Speaker | N/A | |||||||||
| WIFI | N/A | |||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | N/A | |||||||||
| Certifications | ||||||||||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |||||||||
| Safety | CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) | |||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) | |||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 8.0W | ||||||||||
| Power Interface | ? 5.5mm coaxial power plug | |||||||||
| Dimensions (? x H) | Φ128mmx100mm (?5.0” x 3.9”) | |||||||||
| Weight | 0.66kg(1.46lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 6KV | |||||||||
| Reset Button | Support | |||||||||
