IPC3634SE-ADF28(40)K-WL-I0

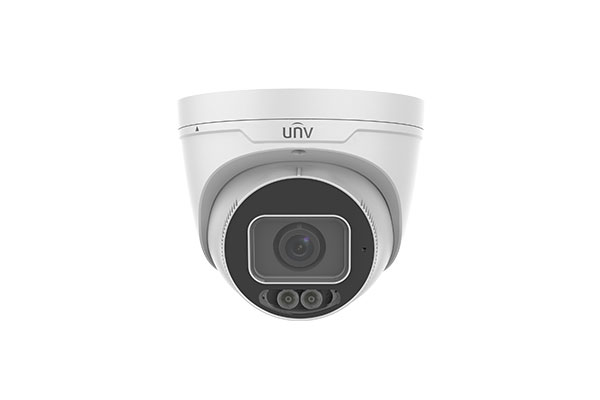

4MP HD Intelligent ColorHunter Fixed Eyeball Network Camera

? High quality image with 4MP, 1/1.8"CMOS sensor
? 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
? Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.
? Intelligent People Flow Counting and Crowd Density Monitoring
? Colorhunter technology ensures 24-hour full-color images
? F1.0 Super aperture
? 120dB true WDR technology enables clear image in strong light scene
? Support 9:16 corridor Mode
? Alarm:1 in/1 out, Audio: 1 in/1 out
? Supports 256 G micro SD card
? IK10 vandal resistant and IP67 protection

	IPC3634SE-ADF28K-WL-I0				IPC3634SE-ADF40K-WL-I0
Camera
Sensor	1/1.8", 4.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.0005 lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 75°					Rotate: 0° ~ 360°
WDR	120dB
S/N	>56dB
Lens
Lens	2.8mm@F1.0					4.0mm@F1.0
Iris	Fixed
Field of View (H)	108.6°					103.0°
Field of View (V)	81.3°					69.2°
Field of View (D)	135.1°					134.6°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)			Recognize (m)		Identify (m)
	2.8	43.4		17.4			8.7		4.3
	4.0	62.1		24.8			12.4		6.2
Illuminator
LED Distance	Up to 30m (98ft)
LEDs Number	2
LED On/Off Control	Auto/Manual
Video
Video Compression	Ultra265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 30fps;4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360, Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Triple streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart Illumination	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Intelligent
Smart intrusion prevention	Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Recognition	Face capture
Statistical Analysis	People counting, support people flow counting and crowd density monitoring
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711
Audio Bitrate	64 Kbps
Two-way audio	Support
Suppression	Support
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR, NAS(NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZView EZLive
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O	Input: impedance 35kΩ; amplitude 2V [p-p]
	Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	1/1
RS485	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certifications
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max9.0W
Power Interface	? 5.5mm coaxial power plug
Dimensions (? x H)	Φ129 x 110mm (Φ5.1” x 4.3”)
Weight	0.69kg (1.52lb)
Material	Metal
Operating Conditions	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	4KV
Reset Button	Support
