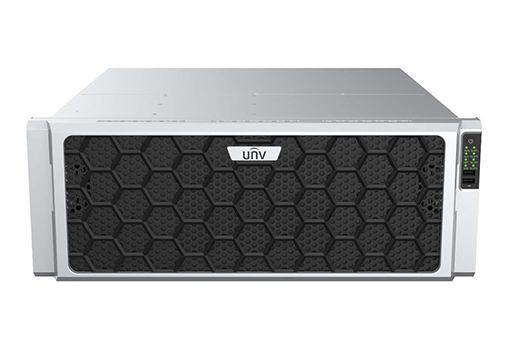

NVR824-128R/256R

128/256 Channel 24 HDDs RAID NVR

? Support Ultra 265/H.265/H.264 video formats
? 128/256-channel input
? Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
? Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
? HDMI1, HDMI2 and VGA independent outputs provided
? Up to 12 Megapixels resolution recording
? Redundant power supply optional
? Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
? 24 SATA HDDs, up to 16TB for each HDD
? Support 2 miniSAS Interfaces
? Support 12V power output
? ANR technology to enhance the storage reliability when the network is disconnected
? Support cloud upgrade
? Support N+1 Hot spare

Support Ultra 265/H.265/H.264 video formats
128/256-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution
HDMI1, HDMI2 and VGA independent outputs provided
Up to 12 Megapixels resolution recording
Redundant power supply optional
Support HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60 storage scheme configurable
24 SATA HDDs, up to 16TB for each HDD
Support 2 miniSAS Interfaces
Support 12V power output
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade
Support N+1 Hot spare

Model	NVR824-128R	NVR824-256R
Video/Audio Input
IP Video Input	128-ch	256-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	768Mbps
Outgoing Bandwidth	768Mbps
Remote Users	128	256
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Decoding format	Ultra 265, H.265, H.264
Live view/Playback	12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1
Hard Disk
SATA	24 SATA interfaces
Capacity	Up to 16TB for each HDD (The maximum HDD capacity varies with environment temperature)
Extension board	4
miniSAS^*	2 miniSAS ports
eSATA	1
Smart
VCA Detection	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Vehicle Control, Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), Ultra Motion Detection(UMD), Video Metadata, Traffic Monitoring
VCA Search	Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), Vehicle Detection, Temperature Detection, UMD, Video Metadata, Traffic Monitoring by Camera	Total 64-ch
Disk Array
Array Type	RAID 0/1/5/6/10/50/60
External Interface
Network Interface	4 RJ-45 10M/100M/1000M adaptive Ethernet Interface
Serial Interface	1 x RS232, 1 x RS485
USB Interface	Front panel: 2 x USB2.0, Rear panel: 2 x USB3.0
Alarm In	24-ch
Alarm Out	8-ch
Power Output	12V
General
Power Supply	100 ~ 240V AC Power Consumption: ≤ 70 W (without HDD)
Working Environment	-10°C ~ + 50°C (+14°F ~ +122°F), Humidity ≤ 90% RH (non-condensing)
Dimensions	533mm ×484.6mm × 175.5mm (21.0 "×19.1" ×6.9")
Weight (without HDD)	≤ 12.5 Kg (27.56 lb)

Datasheet of NVR824-128R/256R
