UAC-T115-F28(40)-W—Zhejiang Uniview Technologies Co., Ltd.

UAC-T115-F28(40)-W

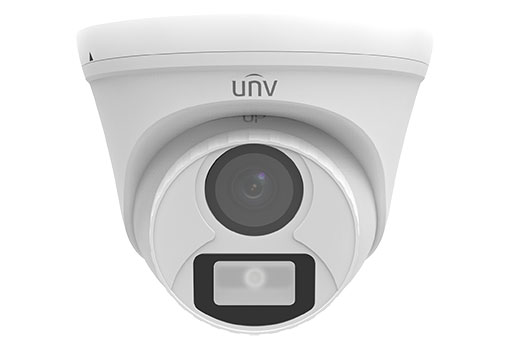

5MP ColourHunter HD Fixed Turret Analog Camera

Model	UAC-T115-F28-W	UAC-T115-F40-W
Sensor
Pixel	5MP
Size	1/2.7"
Minimum illumination	0.02lux(F1.6, AGC ON) 0 lux (white light on)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 110.0° V: 57.0° D: 130.0°	H: 90.0° V: 48.0° D: 109.1°
Illuminator
Illuminator	One white-light illuminator
Illumination distance	20m
Lifetime	≥60,000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V);5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame rate	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	4 modes: Global (default), BLC, HLC, DWDR
Day/Night	24/7 color images
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Flip	Supports 180° horizontal flip, 180° vertical flip.
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30℃ to 60℃(-22℉ to 140℉)
Humidity	≤95% (RH, non-condensing)
Surge protection	4KV
Ingress protection	IP67
General
Power	DC12V (±25%), with reverse polarity protection and surge protection, Max 2.4W
Mount	Surface mount (default), optional backbox, wall mount bracket
Dimensions	Φ118mm96mm (diameterheight)
Material	Plastic
Weight	205g(0.452lb)
Certification	CB, CE, FCC
