UAC-B125-AF28(40)LM—Zhejiang Uniview Technologies Co., Ltd.

UAC-B125-AF28(40)LM

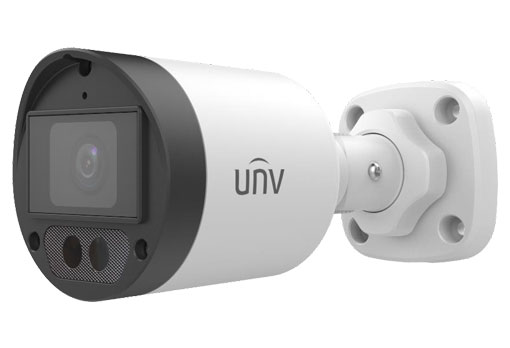

5MP LightHunter HD IR Fixed Mini Bullet Analog Camera

? High quality imaging with 5MP resolution
? TVI/AHD/CVI/CVBS
? Supports IR-cut filter with auto-switch (ICR)
? LightHunter monitoring with high-sensitivity sensor
? Supports 180° horizontal flip, 180° vertical flip
? OSD configuration menu, easy to operate
? IP67 waterproof and dustproof design, high reliability
? OSD configuration menu in 11 languages
? Built-in microphone for high quality audio transmission via coaxial cables

Model	UAC-B125-AF28LM	UAC-B125-AF40LM
Sensor
Pixel	5MP
Size	1/2.7"
Minimum illumination	0.005 lux (F1.6, AGC ON) 0 lux (IR on)
Lens
Lens	2.8mm	4.0mm
Lens mount	M12
Angle of view	H: 109.1° V: 60.9° D: 126.7°	H: 91.3° V: 46.1° D: 109.6°
Illuminator
Illuminator	Two IR illuminators
Illumination distance	40m
Lifetime	≥60,000 hours
Video
Resolution	5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V)
Frame rate	TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC
Shutter time	PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s
Exposure mode	Four modes: Global (default), BLC, HLC, DWDR
Day/Night	Three modes: Auto (default), Day, Night
Digital noise reduction	2D
White balance	Two modes: Auto (default), Manual
WDR	DWDR
Smart IR	Support
Flip	Supports 180° horizontal flip, 180° vertical flip
Audio
Microphone	Built-in Mic
Camera audio	TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps
Interface
Power	5.5mm power interface
Video output	BNC, supports TVI/AHD/CVI/CVBS
Operating environment
Temperature	-30°C to 60°C (-22°F to 140°F)
Humidity	≤95% (RH, non-condensing)
Surge protection	4kV
Ingress protection	IP67
General
Power	DC 12V (±25%), with reverse polarity protection, Max 3.4W
Mount	3D bracket supplied, surface mount (default), optional backbox, pole mount bracket
Dimensions	154mm66mm66mm (LWH)
Material	Metal+Plastic
Weight	240g (0.53lb)
Certification	CE, FCC, UL

Datasheet of UAC-B125-AF28(40)LM
