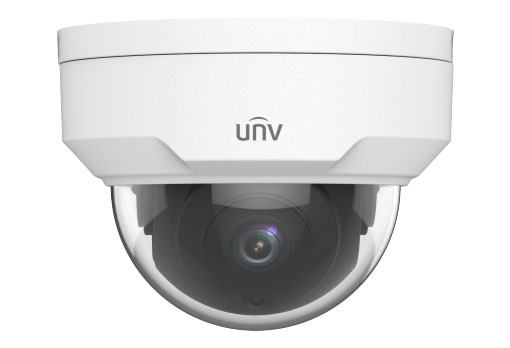

IPC322LB-SF28(40)-A—?????? (Uniview Korea)

Camera	Description
Resolution	2MP
Sensor	1/2.8''CMOS
Min. Illumination	Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment angle	Pan: 3° ~ 360°, Tilt: 0° ~ 75°
S/N	>52dB
WDR	DWDR
Lens	Description
Lens type	IPC322LB-SF28-A:2.8mm IPC322LB-SF40-A:4.0mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	IPC322LB-SF28-A:106.7° IPC322LB-SF40-A:87.5°
Field of View (V)	IPC322LB-SF28-A:57.1° IPC322LB-SF40-A:46.3°
Field of View (D)	IPC322LB-SF28-A:115.7° IPC322LB-SF40-A:92.4°
DORI	Description
DORI Distance（Lens）	IPC322LB-SF28-A:2.8mm IPC322LB-SF40-A:4.0mm
DORI Distance（Detect）	IPC322LB-SF28-A:43.4m(142.4ft) IPC322LB-SF40-A:62.1m(203.7ft)
DORI Distance（Observe）	IPC322LB-SF28-A:17.4m(57.1ft) IPC322LB-SF40-A:24.8m(81.4ft)
DORI Distance（Recognize）	IPC322LB-SF28-A:8.7m(28.5ft) IPC322LB-SF40-A:12.4m(40.7ft)
DORI Distance（Identify）	IPC322LB-SF28-A:4.3m(14.1ft) IPC322LB-SF40-A:6.2m(20.3ft)
Illuminator	Description
IR Range	Up to 30m (98ft)
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video	Description
Video Compression	Ultra 265;H.265;H.264
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~6144 Kbps
U-code	Support (Main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Dual streams
Image	Description
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events	Description
Basic Detection	Motion detection
General Function	Watermark;IP Address Filtering;Access Policy;ARP Protection;RTSP Authentication;User Authentication;HTTP authentication
Network	Description
Protocols	IPv4;IGMP;ICMP;ARP;TCP;UDP;DHCP;RTP;RTSP;RTCP;RTMP;DNS;DDNS;NTP;UPnP;HTTP
Compatible Integration	ONVIF (Profile S, Profile T) ;API;SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password protection;Strong password;HTTPS encryption;Export operation logs;Basic and digest authentication for RTSP;Digest authentication for HTTP;WSSE and digest authentication for ONVIF
Client	EZStation;EZView; EZLive
Web Browser	Plug-in free live view: Chrome 57.0 and above,Firefox 58.0 and above,Edge 16 and above
Interface	Description
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification	Description
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General	Description
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W
Power Interface	? 5.5mm coaxial power plug
Dimensions (? x H)	Φ109 x 81mm (?4.3” x 3.2”)
Weight	0.35kg (0.77lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection	4KV
Reset button	N/A
Web Client Language	1 Language English

Datasheet of IPC322LB-SF28(40)-A
