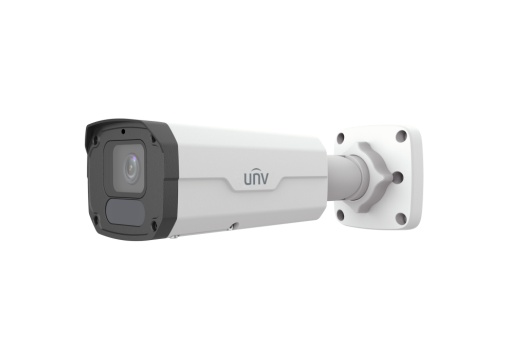

IPC2222SB-AHDF28(40)(60)KM-I1

2MP WDR LightHunter IR Network Dome Camera

? High quality image with 2MP,1/2.8’’ CMOS sensor
? 1920*1080@60fps in the main stream, deliver detailed live while 60fps keeping it smooth and closer to the real image
? Ultra 265, H.265, H.264, MJPEG
? Smart intrusion prevention, support Cross Line and Intrusion based on human body and vehicle detection
? LightHunter technology ensures ultra-high image quality in low illumination environment
? Support 9:16 Corridor Mode
? Up to 120 dB Optical WDR (Wide Dynamic Range)
? Support Smart IR, up to 80m IR range
? DC12V or PoE (IEEE 802.3af) power supply
? Audio 1 in and 1 out, Alarm 1 in and 1 out
? Built-in Mic
? IP67,IK10

?? ????

	IPC2222SB-AHDF28KM-I0		IPC2222SB-AHDF40KM-I0			IPC2222SB-AHDF60KM-I0
Camera
Sensor	1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. Illumination	Colour:0.001 lux (F1.6, AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	>52dB
Lens
Lens type	2.8mm@F1.6		4.0mm@F1.6			6.0mm@F1.6
Field of View (H)	105.9°		86.9°			54.0°
Field of View (V)	56.4°		44.7°			28.7°
Field of View (D)	137.7°		106.9°			66.4°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)		Identify (m)
	2.8	43.4(142.5ft)		17.4(57.0ft)	8.7(28.5ft)		4.3(14.3ft)
	4.0	62.1(203.6ft)		24.8(81.5ft)	12.4(40.7ft)		6.2(20.4ft)
	6.0	93.1(305.5ft)		37.2(122.2ft)	18.6(61.1ft)		9.3(30.5ft)
Illuminator
IR Range	Up to 80m (262 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (19201080),Max 60fps; Sub Stream: 720P (1280720), Max 60fps;
Video Bit Rate	128 Kbps~16 Mbps
ROI	Up to 8 areas
Video stream	Dual streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas per scene
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital Defog
Intelligent
Smart intrusion prevention	Support false alarm filtering: Cross Line detection, Intrusion detection(based on human body and vehicle detection)
Events
Basic Detection	Ultra Motion detection(based on human body and vehicle detection), Motion detection, Audio detection, Tampering alarm
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps,128kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8KHz,16KHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4,IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and common user
Security	Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZview
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/O	1/1
Alarm I/O	1/1
Built-in Mic	Support
Network	1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
General
Power	DC12V(±25%), PoE(IEEE 802.3af)
	Power consumption: Max 8W
Power Interface	? 5.5mm coaxial power plug
Dimensions	245 x 87 x 86mm(9.6” x 3.4” x 3.4”)
Weight	0.82kg(1.81lb)
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Datasheet of IPC2222SB-AHDF28(40)(60)KM-I1
