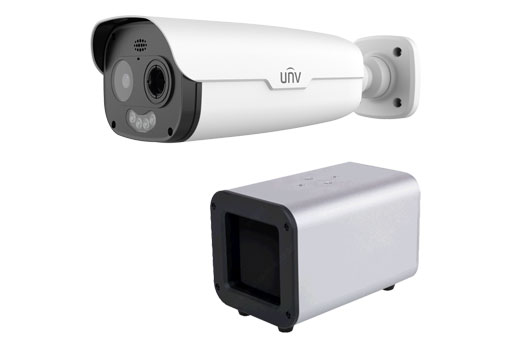

TIC2531TER5-F10-4F6APCA—?????? (Uniview Korea)

Optics

Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes

Starlight illumination

Smart

Support human body temperature screening which should be used with black-body

Support alarm when no mask and abnormal temperature are detected

Support audio and light alarm

Compression

Ultra 265, H.265, H.264, MJPEG

Triple streams

Max 2688*1520@60fps in the optical module

Max 720P@25fps in the thermal module

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

Alarm 2 in and 2 out, Audio 1 in and 1 out

IP66

	TIC2531TER5-F10-4F6APCA
Optical Module
Sensor	1/1.8", 4.0 megapixel, progressive scan, CMOS
Lens	6mm@F1.6,
Iris	Fixed Iris
Field of View (H)	56. 1°
Field of View (V)	31.7°
Frame Rate	4MP(2688*1520), Max 60fps
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour:0.001lux (F1.6, AGC ON) 0 lux with IR
WDR	120dB
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 50m (164 ft) IR range
Wavelength	850nm
IR On/Off Control	Auto/Manual
BLC	Supported
Thermal Module
Sensor type	Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution	384*288
Field of View (H)	39.0°
Field of View (V)	29.6°
Frame Rate	720P(1280*720), Max 25fps
Response waveband	8~14μm
Pixel size	17μm
IFOV	1.75mrad
NETD	≤40mk @ f1.0 @25°C
Lens(focal length)	10mm @F1.0
Palette	Up to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Temperature screening accuracy
Temperature range	30°C~42°C
Temperature accuracy	±0.3°C (with black-body), without black-body is not supported
Temperature screening working environment	16°C~32°C
Smart
Human body Temperature screening	Support human body temperature screening when OSD displays the temperature on the body surface or inside Support human body temperature screening alarm, and set alarm threshold temperature
Audio and light alarm	Support audio and light warning function, with red and blue warning lights built in
Alarm	Support alarm when no mask and abnormal temperature are detected
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Video
Compression	Ultra265, H.265, H.264, MJPEG
Video Stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas(8 blacks)
Audio
Audio Compression	G.711U,G.711A
Two-way audio	Supported, Built in mic and speaker
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS,
Compatible Integration	ONVIF (Profile S, Profile G, Profile T)
Web Browser	Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Interface
Audio I/O	Audio cable
	1 Input: impedance 35kΩ; amplitude 2V [p-p]
	1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O	2/2
Serial Port	1 RS485
Network	1 x RJ45 10M/100M Base-TX Ethernet
General
Power	DC12V(±25%), PoE+(IEEE802.3at)
	Power consumption: Max 14W
	Support reverse polarity protection, Overvoltage and overcurrent protection , Input short circuit protection
Dimensions (? x H)	Φ395.2mmx137.0mmx112.0mm(Φ15.6’’x5.4’’x4.4’’)
Net Weight	3.5kg(7.7lb)
Installation method	Tripod
Ingress Protection	IP66
