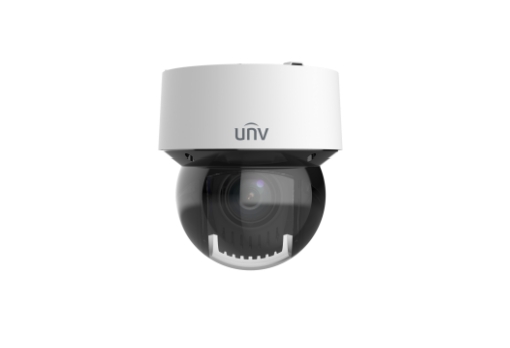

High quality image with 4MP,1/2.9" CMOS sensor
2688*1520@30fps in the main stream
Ultra 265, H.265, H.264, MJPEG
Dual streams
16X optical zoom
LightHunter technology ensures ultra high image quality in low illumination environment
Smart IR, up to 100m (328ft) IR distance
DC12V±10% or PoE+ (IEEE 802.3at)
Alarm 2 in and 1 out, audio 1 in and 1 out
IP66 ingress protection
IK10 vandal resistant
| Camera | Description |
| Resolution | 4MP |
| Sensor | 1/2.9''CMOS |
| Min. Illumination | Colour: 0.005 Lux (F1.78, AGC ON) 0 Lux with IR |
| Day/Night | IR?cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| Lens | Description |
| Lens type | 5.5~88mm |
| Optical Zoom | 16X |
| Iris | F1.78?F3.73 |
| Field of View (H) | 50.85°~3.47° |
| Field of View (V) | 29.94°~1.95° |
| Field of View (D) | 62.55°~4.09° |
| DORI | Description |
| DORI Distance（Detect） | 127.6m~2048.4m(418.6ft~6720.5ft) |
| DORI Distance（Observe） | 51.0m~819.4m(167.4ft~2688.2ft) |
| DORI Distance（Recognize） | 25.5m~409.7m(83.7ft~1344.1ft) |
| DORI Distance（Identify） | 12.8m~204.8m(41.9ft~672.0ft) |
| Illuminator | Description |
| Illumination Distance(IR) | Up to 100m (328 ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | Description |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| Video stream | Dual streams |
| Frame Rate | Main Stream: 4MP(2688*1520),Max 30fps Sub Stream: 720P(1280*720), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| U-code | Support |
| ROI | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Image | Description |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital Defog |
| Intelligent | Description |
| Smart intrusion prevention | Support false alarm filtering: Cross line detection, Intrusion detection |
| Auto-Tracking | Support, target filtering: vehicle, humanbody |
| Events | Description |
| Basic Detection | Motion detection; Tampering alarm; Audio detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input |
| Audio | Description |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| Storage | Description |
| Edge Storage | Micro SD，up to 256 GB |
| Network Storage | ANR; NAS(NFS) |
| Network | Description |
| Protocols | IPv4; IPv6; IGMP; RTP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| Client | EZStation; EZLive; EZView |
| Web Browser | Plug?in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Pan/Tilt | Description |
| Pan Range | 360°(endless) |
| Pan Speed | 0.1°/s~240°/s |
| Tilt Range | –5°~90°(auto flip) |
| Tilt Speed | 0.1°/s~120°/s |
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15s~1800s |
| Home Position | Support |
| Interface | Description |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1*RS485 |
| Network | 1*RJ45 10M/100M Base?TX Ethernet |
| Certification | Description |
| EMC | CE?EMC (EN 55032: 2015+A11:2020+A1：2020,EN IEC 61000?3?2: 2019+A1: 2021,EN 61000?3?3: 2013+A1: 2019+A2:2021,EN 50130?4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4?2014) |
| Safety | CE LVD (EN 62368?1:2014+A11:2017) UL (UL 62368?1, 2nd Ed., Issue Date: 2014?12?01) |
| Environment | CE?RoHS (2011/65/EU;(EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| General | Description |
| Power | DC12V(±10%,3A), PoE+(IEEE 802.3at) |
| Power Consumption | Max 23W |
| Power Interface | ? 5.5mm coaxial power plug |
| Dimensions | ? 167 x 181mm(? 6.6” x 7.1”) |
| Weight | 2.3Kg(5.07lb) |
| Working Environment | ?40℃~65℃ (?40°F~149°F), Humidity: ≤95% RH (non?condensing) |
| Storage Environment | ?40℃~70℃ (?40°F~158°F), Humidity: ≤95% RH (non?condensing) |
| Surge protection | 6KV |
| Reset button | Support |
