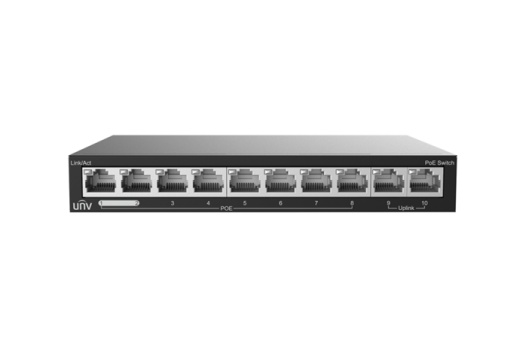

NSW2020-Series-LPOE—?????? (Uniview Korea)

Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)

Support port traffic control

Support for secure mode, all downlink ports can communicate only with uplink ports

Up to 250m transmission distance on surveillance mode

Support buffer optimization

All metal housing, safe and reliable

Model	NSW2020-10T-LPOE-IN	NSW2020-16T1GT1GC-LPOE-IN	NSW2020-24T1GT1GC-LPOE-IN
Ports	10×100Mbps network ports (RJ45), including 8 PoE ports	16×100Mbps PoE ports (RJ45)+ 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports	24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports
Standards	IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at	IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity	2Gbps	7.2Gbps	8.8Gbps
Forwarding performance	1.49Mpps	5.36Mpps	6.55Mpps
Packet Buffer	448kbit	4M bit	4Mbit
MAC	1K	16K	16K
Dimensions (W×D×H)	17110325mm	44019544mm	44019544mm
Weight	0.29KG	1.99KG	2.15KG
Power supply	DC：48/51V	AC: 100-240V, 50/60Hz
PoE	802.3at/af （4/5+，7/8-）
Max. PoE Power	Max capacity:60W Max capacity for single port: 30W	Max capacity: 135W Max capacity for single port: 30W	Max capacity: 225W Max capacity for single port: 30W
Prior Ports	1~2	1~8	1~8
Cooling Fans	0	0	1
Operating temperature	0°C-40°C (32°F-104°F)
Operating humidity	10%～90% (noncondensing)
Storage humidity	5%～90% (noncondensing)
Indicator	POWER: Steady on: AC input is normal Off: No AC input
	No PoE Indicator	PoE: Off: No PoE power supply Steady on: PoE power supply is normal
	PoE-MAX： off ：The POE power supply power of the whole machine is less than 80% of the specification Steady on : The POE power supply power of the whole machine is greater than 85% of the specification
	LINK/ACT： Off: No link Steady on: Linked Flashing: Transmitting data
Working Mode	Default(Normal mode) : All ports can communicate with each other. EXTEND(Surveillance mode): Transmission distance up to 250 meters.	Default(Normal mode) : All ports can communicate with each other. VLAN(Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IPC via PoE power when the IPC sends no message in a period of time. Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.

Datasheet of NSW2020 Series
