IPC2122LB-AF28(40)K-WL—Zhejiang Uniview Technologies Co., Ltd.

IPC2122LB-AF28(40)K-WL

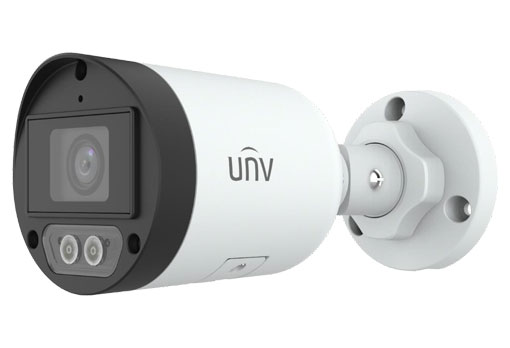

2MP HD ColorHunter Mini Fixed Bullet Network Camera

? High quality image with 2MP, 1/2.9"CMOS sensor
? 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
? Ultra H.265,H.265, H.264
? Built-in Mic
? Warm Light, up to 30m (98ft) warm light distance
? 2D/3D DNR (Digital Noise Reduction)
? Support 128GB Micro SD card
? IP67 protection
? Support PoE power supply
? 3-Axis

	IPC2122LB-AF28K-WL				IPC2122LB-AF40K-WL
Camera
Sensor	1/2.9", 2.0 megapixel, progressive scan, CMOS
Minimum Illumination	Colour: 0.005 lux ( F1.6, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°				Rotate: 0° ~ 360°
WDR	DWDR
S/N	>52dB
Lens
Lens type	2.8mm@F1.6				4.0mm@F1.6
Iris	Fixed
Field of View (H)	101.1°				83.7°
Field of View (V)	55.0°				44.6°
Field of View (D)	111.0°				89.1°
DORI
DORI Distance	Lens (mm)	Detect (m)		Observe (m)		Recognize (m)		Identify (m)
	2.8	45.0(147.6ft)		18.0(59.1ft)		9.0(29.5ft)		4.5(14.8ft)
	4.0	64.3(210.9ft)		25.7(84.4ft)		12.9(42.2ft)		6.4(21,1ft)
Illuminator
Warm Light Range	Up to 30m (98ft)
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra H.265,H.265, H.264
Frame Rate	Main Stream: 2MP (19201080),Max 30fps; 720P (1280720),Max 30fps Sub Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps
H.264 code profile	Baseline profile, Main profile, High profile
Video Bit Rate	128 Kbps~6144Kbps
U-code	Support(Main stream)
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video stream	Dual streams
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart Illumination	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital Defog
Events
Basic Detection	Motion detection, Audio Detection
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8KHz
Storage
Edge Storage	Micro SD, up to 128 GB
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP,RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, Qos, ,SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile T, Profile G),API,SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 50130) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) CB (IEC 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)
General
Power	DC12V(±25%) , PoE(IEEE 802.3af)
	Power consumption: Max 7.8W
Power Interface	? 5.5mm coaxial power plug
Dimensions (L x W x H)	162 × 67 × 67mm (6.4” × 2.6” × 2.6”)
Weight	0.24kg(0.53lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge protection	4KV
Reset button	N/A
