IPC322LB-AF28WK-G—Zhejiang Uniview Technologies Co., Ltd.

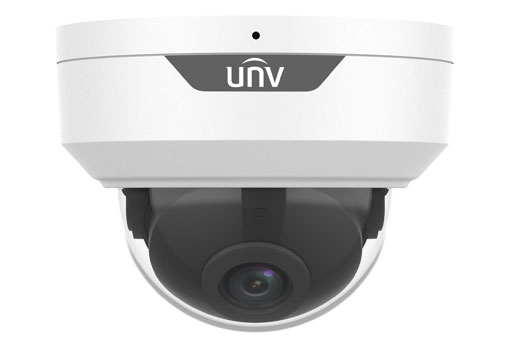

		IPC322LB-AF28WK-G
Camera
Sensor		1/2.9", progressive scan , 2.0 megapixel, CMOS
Min. Illumination		Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR
Day/Night		IR-cut filter with auto switch (ICR)
Shutter		Auto/Manual, 1~1/100000 s
Adjustment angle		Pan: 0°~352°		Tilt: 0°~70°			Rotate: 0°~350°
S/N		>52dB
WDR		DWDR
Lens
Lens Type		2.8mm @F2.0
Iris		Fixed
Field of View (H)		101.1°
Field of View (V)		55.0°
Field of View (D)		111.0°
DORI
DORI Distance		Lens	Detect(m)		Observe(m)	Recognize(m)		Identify(m)
		2.8mm	45.0		18.0	9.0		4.5
Illuminator
IR Range		Up to 30m (98 ft) IR range
Wavelength		850nm
IR On/Off Control		Auto/Manual
Video
Video Compression		Ultra 265, H.265, H.264, MJPEG
H.264 code profile		Baseline profile, Main profile, High profile
Frame Rate		Main Stream: 1080P (19201080), Max 30fps; 720P (1280720), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate		128 Kbps~6 Mbps
U-code		Support
OSD		Up to 4 OSDs
Privacy Mask		Up to 4 areas
ROI		Up to 8 areas
Video stream		Dual streams
White Balance		Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction		2D/3D DNR
Smart IR		Support
Flip		Normal/Vertical/Horizontal/180°
Dewarping		N/A
HLC		Support
BLC		Support
Defog		Digital Defog
Events
Basic Detection	Human body detection, Motion detection, tampering alarm, audio detection
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8KHZ
Storage
Edge Storage		Micro SD, up to 128GB
Network Storage		ANR,NAS(NFS)
Network
Protocols		IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
Compatible Integration		ONVIF (Profile S, Profile G, Profile T), API , SDK
User/Host		Up to 32 users. 2 user levels: administrator and common user
Security		Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client		EZStation EZView EZLive
Web Browser		Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
		Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Wi-Fi
Wireless Standards		IEEE802.11b/g/n
Frequency Range		2.4 GHz ~ 2.4835 GHz
Channel Bandwidth		20 MHz Support
Modulation Mode		802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM/HT
Security		64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power		802.11b: 17±1.5dBm @11Mbps 802.11g: 14±1.5dBm @54Mbps 802.11n: 12.5±1.5dBm @150Mbps
Receive Sensitivity		802.11b: -90dBm @11Mbps (Typical) 802.11g: -75dBm @54Mbps (Typical) 802.11n: -74dBm @150Mbps(Typical)
Transmission Rate		802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps
Interface
Audio I/O		N/A
Alarm I/O		N/A
RS485		N/A
Built-in Mic		Support
Built-in Speaker		N/A
WIFI		Support
Network		1 * RJ45 10M/100M Base-TX Ethernet
Video Output		N/A
Certification
EMC		CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
RF		FCC ID (FCC CFR 47 part15 C) CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
Safety		CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment		CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection		IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
General
Power		DC 12V±25%
		Power consumption: Max 4.0W
Power Interface		? 5.5mm coaxial power plug
Dimensions (? x H)		Φ109 x 83 mm (?4.29” x 3.3”)
Weight		0.32 kg (0.71 lb)
Material		Metal + Plastic
Working Environment		-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Strorage Environment		-30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
Surge Protection		4KV
Reset Button		Support
