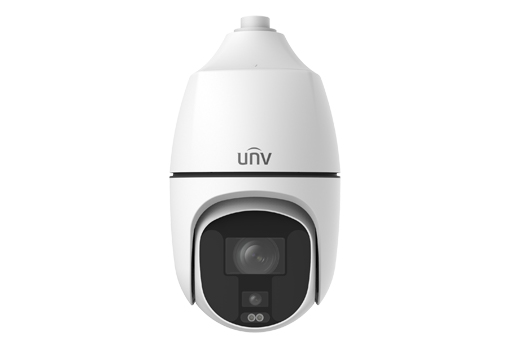

	IPC68188EFW-X25-F40G-VH
Camera	Channel 1			Channel 2
Sensor	1/1.8", 8MP, CMOS			1/1.2", 8MP, CMOS
Min. Illumination	Colour:0.0005 lux (F1.0, AGC ON) 0 lux with Warm light			Colour:0.0005 lux (F1.6, AGC ON) 0 lux with IR
Day/Night	N/A			IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB
S/N	＞56dB
Lens
Lens type	4mm@F1.0			10~250mm@F1.6, AF automatic focusing and motorized zoom lens
Digital Zoom	N/A			16X
Optical Zoom	N/A			25X
Iris	Fixed aperture			Auto; F1.6(W)~F5.4(T)
Angle of View (H)	92.9°			58.3° ~ 3.0°
Angle of View (V)	49.1°			34.8° ~ 1.7°
Angle of View (O)	114.3°			71.7° ~ 3.6°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
	4 (Panorama)	62.1 (203.6 ft)	24.8 (81.5 ft)		12.4 (40.7 ft)	6.2 (20.4 ft)
	10 (Detail)	222.8 (730.8 ft)	89.1 (292.3 ft)		44.6 (146.2 ft)	22.3 (73.1 ft)
	250 (Detail)	4882.5 (16018.7 ft)	1953.0 (6407.5 ft)		976.5 (3203.7 ft)	488.3 (1601.9 ft)
Illuminator
IR Range	N/A			Up to 250m (820.2 ft)
Warm Light Range	Up to 30m (98.4 ft)			N/A
Wavelength	N/A			850nm (IR)
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 8MP (38402160),Max 30fps Sub Stream: 1080P (19201080), Max 30fps Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps ~ 16 Mbps
U-code	Support
ROI	Up to 8 areas
Video stream	Triple streams
OSD	Up to 8 OSDs
Privacy Mask	24 areas, up to 8 areas per scene
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
EIS	Support
HLC	Support
BLC	Support
Defog	Digital defog			Optical Defog & Digital Defog
Events
Basic Detection	Tampering detection, Motion detection, Audio detection
Auto Tracking	Support
General Function	Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and common user
Security	Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above, Safari 11 and above
	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range	360°
Pan Speed	0.1°/s ~ 180°/s
	Preset speed: 300°/s
Tilt Range	-15° ~ 90°
Tilt Speed	0.1°/s ~ 180°/s
	Preset speed: 240°/s
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15s ~ 1800s
Preset Image Freeze	Support
Home Position	Support
Interface
Audio I/O	1/1
Alarm I/O	7/2
Serial Port	1 RS485
Built-in Mic	N/A
Built-in Speaker	N/A
Wi-Fi	N/A
Network	1100M/1000M Base-FX SFP + 110M/100M/1000M Base-TX Ethernet
Video Output	N/A			1 BNC
Certification
EMC	CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC24V (±25%), AC24V (±25%)
	Power consumption: MAX 63W
Power Interface	Wires with cold-pressed terminal
Dimensions (? x H)	Φ270 x 497mm (Φ10.6” x 19.6”)
Weight	10.08kg (22.2lb)
Working Environment	-40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection	6KV
Reset button	Support

Datasheet of IPC68188EFW-X25-F40G-VH
