CAB-LC3100A-E-IN

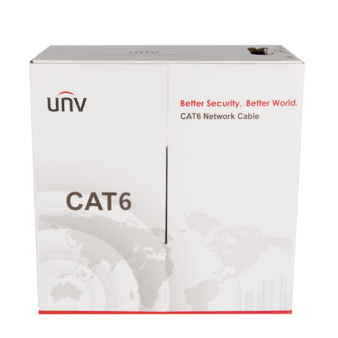

Cat6 305m UTP Network Cable (OFC 0.5mm Orange)

Especifica??o

Baixar

Class	Date	Title	Language	Type	Preview	Download
Datasheet	2025/8/26 18:44:55	UNV CAB-LC3100A-E-IN UTP Category 6 Cables（0.52mm）.pdf	English	pdf	Preview	Download

Class	Date	Title	Type	Download
HD Image	2025/8/28 18:58:35	CAB-LC3100A-E-IN_HD_Image_1.png	png	Download

Want to learn more?

0%

	CAB-LC3100A-E-IN
Cable
Product model	CAB-LC3100A-E-IN
Test Standard	ISO/IEC11801、TIA-568-C.2
Product specification	HSYV-6 4×2×0.52
Packing length	305±1m
Ambient temperature	-20℃～60℃
Rip-cord	Yes
Crossing backbone	Yes
Conductor
AWG	24
Nom.O.D.(mm)	0.52±0.03 mm
DC resistance	≤95 Ω/km
Material	OFC(Oxygen free copper)
Insulation
Diameter	0.93±0.05 mm
Material	HDPE
Thickness	0.2±0.02 mm
Color	Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch	≤20 mm
Cable pitch	≤120 mm
Sheath
Material	PVC(complies RoHS/REACH)
Thickness	0.6±0.05 mm
External O.D.	5.8±0.3 mm
Tensile strength	>13.5 Mpa
Color	Orange
Surface Printing
Color	Black
Letter height	3.0±0.3 mm
Print error / Space	1±0.005 m
Case number	Yes
Packing
Packing	Carton
Once packing dimension	420mm205mm420mm
Twice packing dimension	450mm440mm445mm
Twice packing quantity	2 cases
