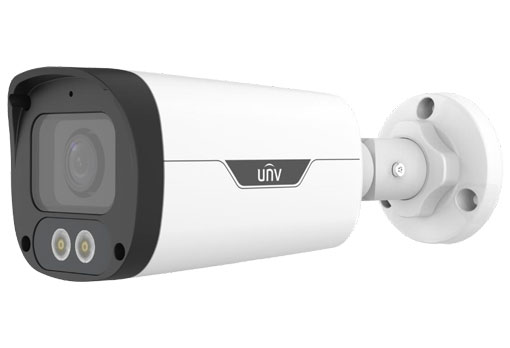

High quality image with 4MP, F1.0 large aperture lens
TVI/AHD/CVI/CVBS
Supports white light illumination, 24/7 color images
3D noise reduction technology delivers clean and sharp images
Supports 180° horizontal flip, 180° vertical flip
OSD configuration menu, easy to operate
IP67 waterproof and dustproof design, high reliability
OSD configuration menu in 11 languages
Built-in microphone for high quality audio transmission via coaxial cables
120dB true WDR technology enables clear image in strong light scene
| Model | UAC-B134-ADF28MS-W | UAC-B134-ADF40MS-W |
| Sensor | ||
| Pixel | 4MP | |
| Size | 1/1.8" | |
| Minimum illumination | 0.0005 lux (F1.0, AGC ON) 0 lux (white light on) | |
| Lens | ||
| Lens | 2.8mm | 4.0mm |
| Lens mount | M16 | |
| Angle of view | H: 105.9° V: 57.1° D: 125.0° | H: 89.5° V: 48.0° D: 105.9° |
| Illuminator | ||
| Illuminator | Two white-light illuminators | |
| Illumination distance | 40m | |
| Lifetime | ≥60,000 hours | |
| Video | ||
| Resolution | 4MP: 2560(H) × 1440(V) 1080P: 1920(H)×1080(V) | |
| Frame rate | CVI/AHD/TVI: 4MP@25fps (default), 4MP@30fps,1080P@25fps, 1080P@30fps CVBS: PAL, NTSC | |
| Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s | |
| Image | ||
| Exposure mode | Four modes: Global (default), BLC, HLC, WDR | |
| Day/Night | 24/7 color images | |
| Digital noise reduction | 2D/3D | |
| White balance | Two modes: Auto (default), Manual | |
| WDR | 120dB WDR | |
| Flip | Supports 180° horizontal flip, 180° vertical flip | |
| Defog | N/A | |
| Audio | ||
| Microphone | Built-in Mic | |
| Camera audio | CVI: 4MP@25fps, 4MP@30fps, 1080P@25fps, 1080P@30fps | |
| Interface | ||
| Power | 5.5mm power interface | |
| Video output | BNC, supports TVI/AHD/CVI/CVBS | |
| Operating environment | ||
| Temperature | -30°C to 60°C (-22°F to 140°F) | |
| Humidity | ≤95% (RH, non-condensing) | |
| Surge protection | 4kV | |
| General | ||
| Power | DC 12V (±25%), with reverse polarity protection, Max 6.8W | |
| Mount | 3D bracket supplied, surface mount (default), optional junction box | |
| Dimensions | 206mm*73mm*73mm (L*W*H) | |
| Material | Metal | |
| Weight | 463g (1.02lb) | |
| Certification | ||
| EMC | CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | |
| Safety | CE-LVD (EN 62368-1) | |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |
| Protection | IP67 (IEC 60529) | |
