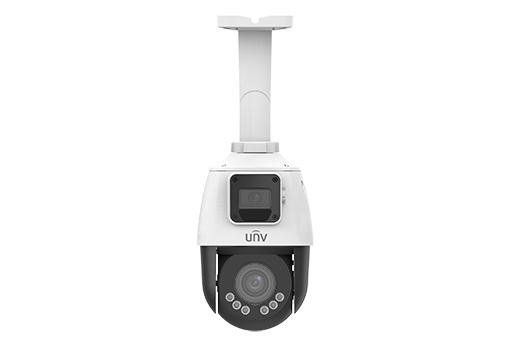

	IPC9312LFW-AF28-2X4
Camera	Panorama			Detail
Sensor	1/2.8", 2MP, CMOS
Min. Illumination	Color:0.002 lux (F1.6, AGC ON) 0 lux with IR			Color:0.002 lux (F1.6, AGC ON) 0 lux with IR/Warm light
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000s
WDR	120dB			DWDR
S/N	＞52dB
Lens
Lens type	2.8mm@F1.6			2.8~12mm@F1.6, AF automatic focusing and motorized zoom lens
Optical Zoom	N/A			4X
Iris	Fixed aperture
Field of View (H)	102.4°			106.6° ~ 30.6°
Field of View (V)	54.9°			56.5° ~ 17.4°
Field of View (D)	133.1°			138.6° ~ 37.6°
DORI
DORI Distance	Lens (mm)	Detect (m)	Observe (m)		Recognize (m)	Identify (m)
	2.8(Panorama)	43.4(142.5ft)	17.4(57.0ft)		8.7(28.5ft)	4.3(14.3ft)
	2.8(Detail)	43.4(142.5ft)	17.4(57.0ft)		8.7(28.5ft)	4.3(14.3ft)
	12(Detail)	162.9(534.6ft)	65.2(213.8ft)		32.6(106.9ft)	16.3(53.5ft)
Illuminator
IR Range	Up to 10m (32.8 ft)			Up to 50m (164.0 ft)
Warm Light Range	N/A			Up to 10m (32.8 ft)
Wavelength	850nm (IR)
Light On/Off Control	Auto/Manual
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (19201080),Max 25fps Sub Stream: 720P (1280720), Max 25fps
Video Bit Rate	128 Kbps~16 Mbps
U-code	Support (Main stream)
ROI	Up to 8 areas
Video stream	Dual streams
OSD	Up to 4 OSDs
Privacy Mask	24 areas, up to 4 areas per scene
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Support
Flip	Normal/Flip Vertical/Flip Horizontal/180°
HLC	Support
BLC	Support
Defog	Digital defog
Events
Basic Detection	Motion detection, Audio detection
General Function	Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and common user
Security	Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation EZLive EZView
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range	N/A			0° ~ 345°
Pan Speed	N/A			1°/s ~ 40°/s
	Preset speed: N/A			Preset speed: 40°/s
Tilt Range	18° ± 5°			-10° ~ 100°
Tilt Speed	N/A			1°/s ~ 50°/s
	Preset speed: N/A			Preset speed: 50°/s
Number of Presets	256
Preset Patrol	16 patrol routes, up to 64 presets for each route
Patrol Stay Time	1000s~1800s
Preset Image Freeze	N/A
Home Position	Support
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support (Mic*2)
Built-in Speaker	Support
Wi-Fi	N/A
Network	1 * RJ45 10M/100M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN55032:2015; EN55024:2010+A1:2015; EN61000-3-2:2014; EN61000-3-3:2013) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017; EN 62368-1:2014) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC12V, PoE+(IEEE 802.3at)
	Power consumption: MAX 16W
Power Interface	? 5.5mm coaxial power plug
Dimensions (? x H)	Wall Mount: Φ134 x 192 x 302mm (Φ5.3” x 7.6” x 11.9”) Ceiling Mount: Φ134 x 154 x 363mm (Φ5.3” x 6.1” x 14.3”)
Weight	1.03kg (2.27lb)
Working Environment	-20℃ ~ 60℃(-4°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment	-30℃ ~ 70℃(-22°F ~ 158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection	2KV
Reset button	Support
